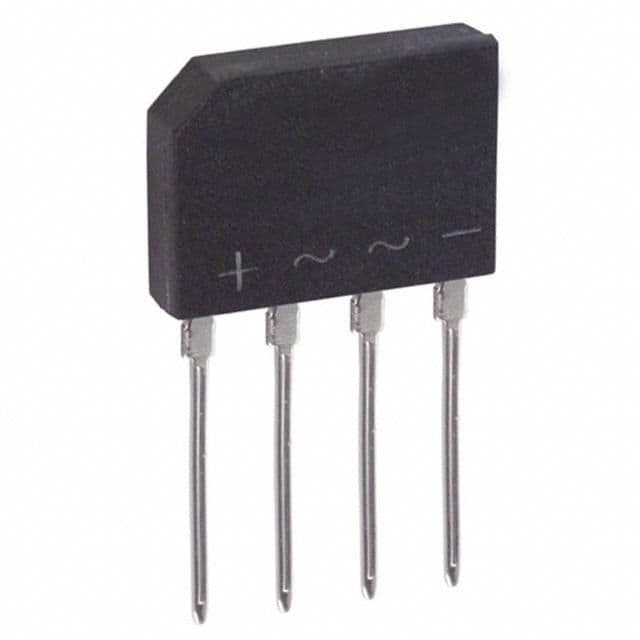

Single-phase bridge rectifier diode with a 2A average rectified current and 200V repetitive reverse voltage. Features a 65A peak non-repetitive surge current and a maximum operating temperature of 150°C. This through-hole mount component has a 25pF capacitance and is supplied in a 4-pin KBP package.
Capacitance25pF
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
Diodes KBP202G technical specifications.
General
Average Rectified Current
2A
Capacitance
25pF
Current Rating
2A
Forward Current
2A
Height
10.6mm
Lead Free
Contains Lead
Length
14.75mm
Max Forward Surge Current (Ifsm)
65A
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
200V
Max Reverse Current
5uA
Max Surge Current
65A
Mount
Through Hole
Number of Elements
1
Output Current
2A
Package Quantity
35
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
65A
Radiation Hardening
No
Reverse Voltage (DC)
140V
RoHS Compliant
Yes
Termination
Through Hole
DC Rated Voltage
200V
Width
3.65mm
Compliance
RoHS
Compliant
Datasheet
Diodes KBP202G Datasheet
Download the complete datasheet for Diodes KBP202G to view detailed technical specifications.
