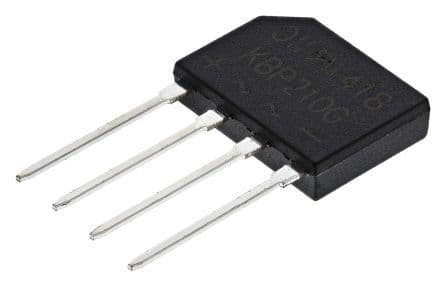

Single-phase bridge rectifier diode, 2A average rectified current, 1000V repetitive peak reverse voltage (V(RRM)). Features a 65A peak non-repetitive surge current, 5µA max reverse current, and 25pF capacitance. Operates from -65°C to 150°C, with a 700V DC rated voltage. Through-hole mounting, plastic package, 4-pin configuration, RoHS compliant.
Capacitance25pF
Current Rating2A
MountingThrough Hole
Quick Jump:
Technical Specifications
Diodes KBP210G technical specifications.
General
Average Rectified Current
2A
Capacitance
25pF
Current Rating
2A
Forward Current
2A
Height
10.6mm
Lead Free
Lead Free
Length
14.75mm
Max Forward Surge Current (Ifsm)
65A
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
1kV
Max Reverse Current
5uA
Max Surge Current
65A
Mount
Through Hole
Number of Elements
1
Output Current
2A
Package Quantity
35
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
65A
Radiation Hardening
No
Reverse Voltage (DC)
700V
RoHS Compliant
Yes
Termination
Through Hole
DC Rated Voltage
1kV
Width
3.65mm
Compliance
RoHS
Compliant
Datasheet
Diodes KBP210G Datasheet
Download the complete datasheet for Diodes KBP210G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
