PNP Silicon Bipolar Junction Transistor (BJT) for small signal applications. Features a 300V Collector-Emitter Breakdown Voltage (VCEO) and a 300V Collector Base Voltage (VCBO). Offers a continuous collector current of -200mA and a maximum collector current of 500mA, with a low collector-emitter saturation voltage of -500mV. Operates with a minimum hFE of 40 and a transition frequency of 50MHz. Packaged in a RoHS compliant SOT-23 surface mount plastic package.
Frequency50MHz
PackageSOT-23
Current Rating-500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes MMBTA92-7-F technical specifications.
General
| Package/Case | SOT-23 |
| Collector Base Voltage (VCBO) | 300V |
| Collector Emitter Breakdown Voltage | 300V |
| Collector Emitter Saturation Voltage | -500mV |
| Collector Emitter Voltage (VCEO) | 300V |
| Collector-emitter Voltage-Max | 500mV |
| Continuous Collector Current | -200mA |
| Current Rating | -500mA |
| Emitter Base Voltage (VEBO) | -5V |
| Frequency | 50MHz |
| Gain Bandwidth Product | 50MHz |
| Height | 1mm |
| hFE Min | 40 |
| Lead Free | Lead Free |
| Length | 3.05mm |
| Max Breakdown Voltage | 300V |
| Max Collector Current | 500mA |
| Max Frequency | 50MHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 300mW |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | PNP |
| Power Dissipation | 300mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q101 |
| Transition Frequency | 50MHz |
| DC Rated Voltage | -300V |
| Weight | 0.000282oz |
| Width | 1.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes MMBTA92-7-F Datasheet
Download the complete datasheet for Diodes MMBTA92-7-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

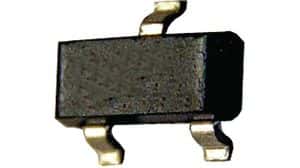

Product Images
