1:7 CMOS clock buffer and driver IC, operating at up to 156MHz. Features a 3.3V supply voltage, 2.5ns propagation and turn-on delay, and 500mW power dissipation. Packaged in a 16-pin TSSOP for surface mounting, this lead-free, RoHS compliant component offers a wide operating temperature range of -40°C to 85°C.
Frequency156MHz
PackageTSSOP
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
Diodes PI49FCT3803LEX technical specifications.
General
| Package/Case | TSSOP |
| Input | CMOS |
| Lead Free | Lead Free |
| Max Frequency | 156MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 500mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Outputs | 7 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 500mW |
| Propagation Delay | 2.5ns |
| Quiescent Current | 100nA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 49FCT |
| Turn-On Delay Time | 2.5ns |
Compliance
| RoHS | Compliant |
Datasheet
Diodes PI49FCT3803LEX Datasheet
Download the complete datasheet for Diodes PI49FCT3803LEX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

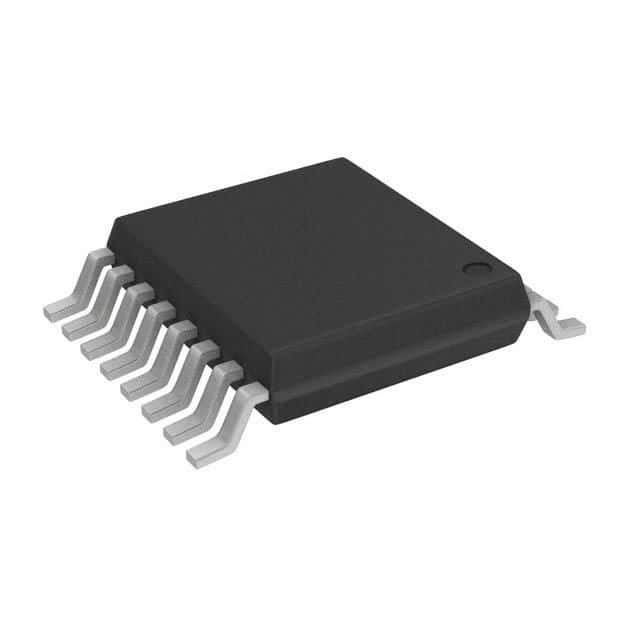

Product Images
