Technical Specifications
Diodes PI5A4684GAEX technical specifications.
General
| -3db Bandwidth | 27MHz |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 250mW |
| Max Supply Current | 200uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Number of Outputs | 4 |
| On-State Resistance | 600mR |
| Operating Supply Current | 200nA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 250mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Type | Single |
| Throw Configuration | SPDT |
Compliance
| RoHS | Compliant |
Datasheet
Diodes PI5A4684GAEX Datasheet
Download the complete datasheet for Diodes PI5A4684GAEX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

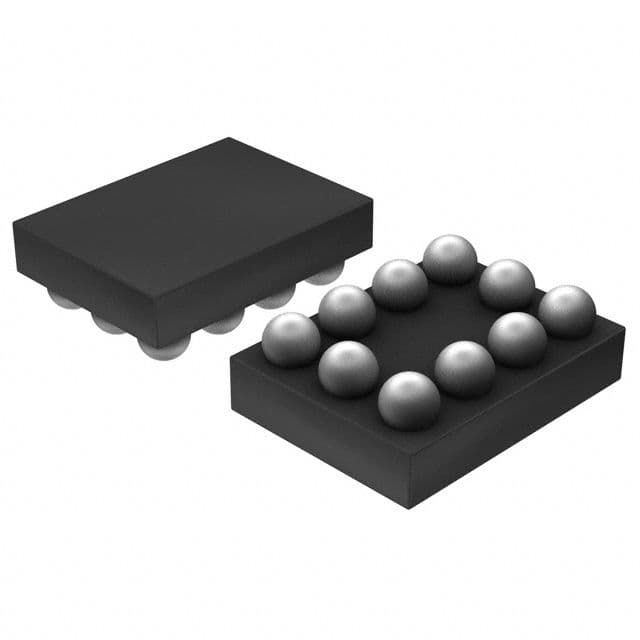

Product Images
