Diodes
PI6C20400BLE
PLL Based Clock Driver, 6C Series, 4 True Output(s), 0 Inverted Output(s), PDSO28, TSSOP-28
Frequency400MHz
PackageTSSOP
Current130mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes PI6C20400BLE technical specifications.
General
Package/Case
TSSOP
Input
HCSL
Lead Free
Lead Free
Max Frequency
400MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.465V
Min Supply Voltage
3.135V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Operating Supply Voltage
3.3V
Package Quantity
50
Packaging
Rail/Tube
PLL
Yes
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
130mA
Compliance
RoHS
Compliant
Datasheet
Diodes PI6C20400BLE Datasheet
Download the complete datasheet for Diodes PI6C20400BLE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

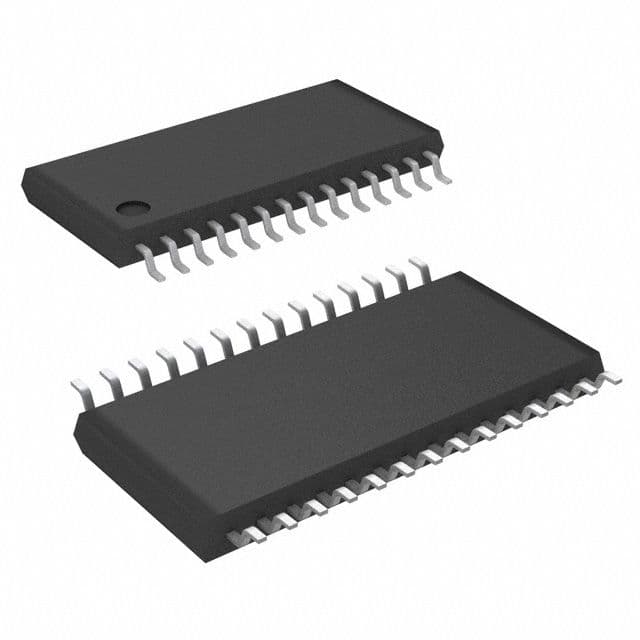

Product Images
