The PI6C20800SAE is a 400MHz HCSL clock generator from Diodes, packaged in a TSSOP package, suitable for surface mount. It operates over a temperature range of 0°C to 70°C and has a supply current of 250mA at 3.3V. This device is RoHS compliant and has a propagation delay of 6ns.
Frequency400MHz
PackageTSSOP
Current250mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes PI6C20800SAE technical specifications.
General
| Package/Case | TSSOP |
| Input | HCSL |
| Lead Free | Lead Free |
| Max Frequency | 400MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 3.135V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Outputs | 8 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 39 |
| Packaging | Rail/Tube |
| PLL | Yes |
| Propagation Delay | 6ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 250mA |
| Supply Voltage-Nom | 3.3V |
Compliance
| RoHS | Compliant |
Datasheet
Diodes PI6C20800SAE Datasheet
Download the complete datasheet for Diodes PI6C20800SAE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

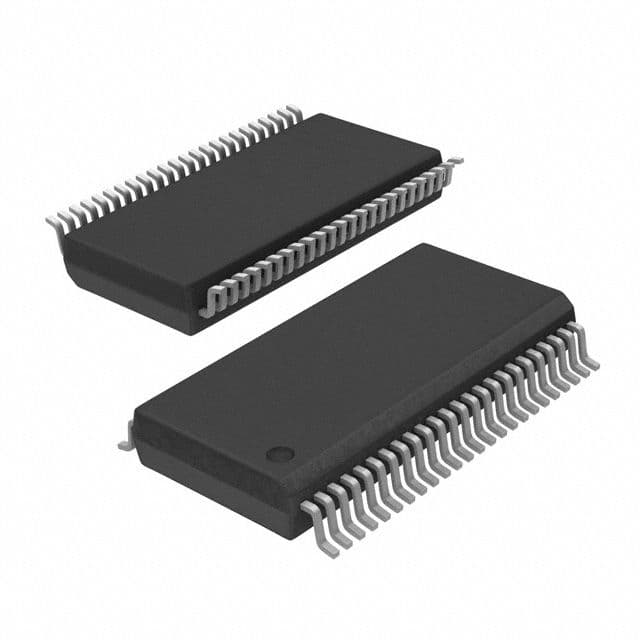

Product Images
