Technical Specifications
Diodes PT7M8216B30XZEX technical specifications.
General
Dropout Voltage
150mV
Max Input Voltage
5.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Min Output Voltage
3V
Mount
Surface Mount
Number of Regulators
1
Output Configuration
Positive
Output Current
300mA
Output Type
Fixed
Output Voltage
3V
Package Quantity
1
Packaging
Cut Tape
Power Supply Rejection Ratio (PSRR)
75dB
Quiescent Current
65uA
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Diodes PT7M8216B30XZEX Datasheet
Download the complete datasheet for Diodes PT7M8216B30XZEX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

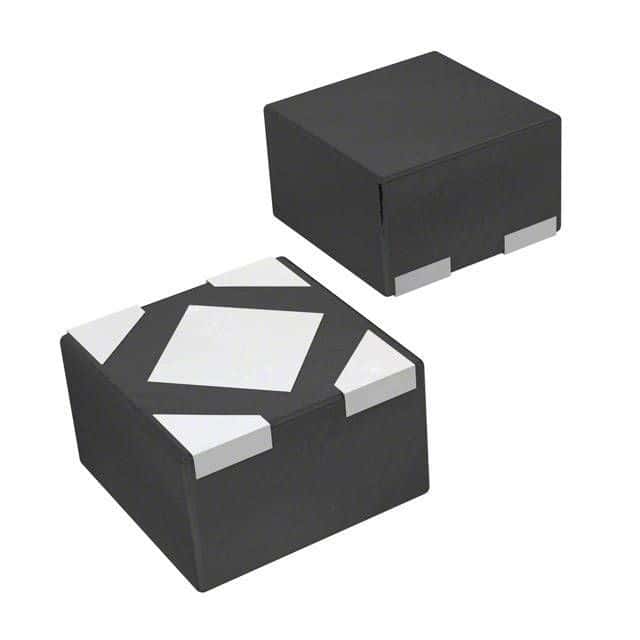

Product Images
