General purpose rectifier diode with 1A average rectified current and 200V repetitive reverse voltage. Features a 1A forward current, 30A peak non-repetitive surge current, and 10pF capacitance. This surface mount device is housed in an SMA plastic package, measuring 4.6mm in length, 2.92mm in width, and 2.1mm in height. Operating temperature range is -65°C to 150°C. RoHS compliant and lead-free.
PackageSMA
Voltage200V
Current1A
Capacitance10pF
Quick Jump:
Technical Specifications
Diodes S1D-13-F technical specifications.
General
| Average Rectified Current | 1A |
| Capacitance | 10pF |
| Package/Case | SMA |
| Current | 1A |
| Current Rating | 1A |
| Forward Current | 1A |
| Height | 2.1mm |
| Lead Free | Lead Free |
| Length | 4.6mm |
| Max Forward Surge Current (Ifsm) | 30A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 200V |
| Max Reverse Current | 5uA |
| Max Reverse Voltage (DC) | 200V |
| Max Surge Current | 30A |
| Mount | Surface Mount |
| Output Current | 1A |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 30A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 3us |
| Reverse Voltage (DC) | 200V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Voltage | 200V |
| DC Rated Voltage | 200V |
| Weight | 0.002258oz |
| Width | 2.92mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes S1D-13-F Datasheet
Download the complete datasheet for Diodes S1D-13-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

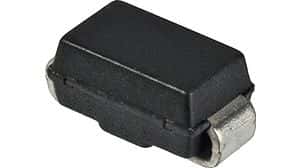

Product Images
