General purpose rectifier diode, 1 phase, 1 element, featuring a 5A average rectified current and 200V repetitive reverse voltage. This silicon diode offers a 5A forward current and 100A surge current capability, housed in an SMC package for surface mounting. With a maximum operating temperature of 150°C and a capacitance of 40pF, it is lead-free and RoHS compliant.
PackageSMC
Capacitance40pF
Current Rating5A
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes S5DC-13-F technical specifications.
General
| Average Rectified Current | 5A |
| Capacitance | 40pF |
| Package/Case | SMC |
| Current Rating | 5A |
| Forward Current | 5A |
| Height | 2.42mm |
| Lead Free | Lead Free |
| Length | 7.11mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 200V |
| Max Reverse Current | 10uA |
| Max Reverse Voltage (DC) | 200V |
| Max Surge Current | 100A |
| Mount | Surface Mount |
| Output Current | 5A |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 100A |
| Polarity | Standard |
| Radiation Hardening | No |
| Reverse Voltage (DC) | 200V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| DC Rated Voltage | 200V |
| Weight | 0.007408oz |
| Width | 6.22mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes S5DC-13-F Datasheet
Download the complete datasheet for Diodes S5DC-13-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

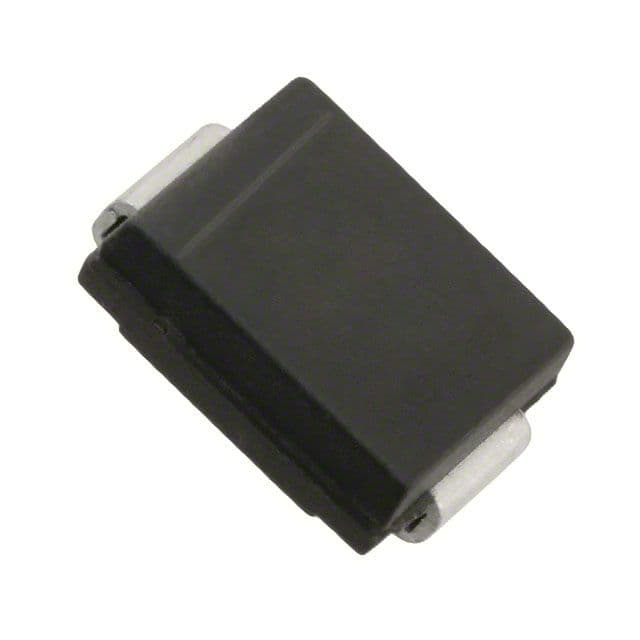

Product Images
