Diodes
SB130-T
Rectifier Diode, Schottky, 1 Element, 1A, 30V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2
PackageDO-41
MountingThrough Hole
Quick Jump:
Technical Specifications
Diodes SB130-T technical specifications.
General
Average Rectified Current
1A
Package/Case
DO-41
Forward Current
1A
Height
2.72mm
Lead Free
Lead Free
Length
5.21mm
Max Forward Surge Current (Ifsm)
40A
Max Operating Temperature
125°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
30V
Max Reverse Current
500uA
Max Reverse Voltage (DC)
30V
Mount
Through Hole
Package Quantity
1
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
40A
Radiation Hardening
No
RoHS Compliant
Yes
Weight
0.010582oz
Width
2.72mm
Compliance
RoHS
Compliant
Datasheet
Diodes SB130-T Datasheet
Download the complete datasheet for Diodes SB130-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

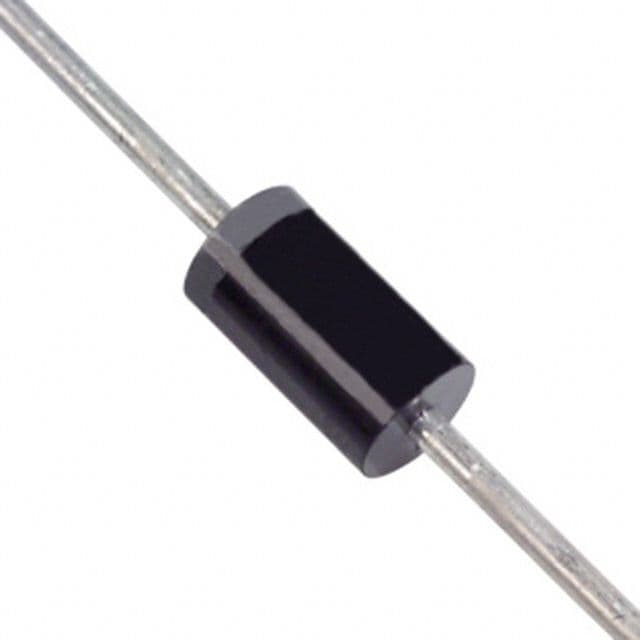

Product Images
