Technical Specifications
Diodes SBR10U45SD1-T technical specifications.
General
| Average Rectified Current | 10A |
| Package/Case | DO-201AD |
| Diameter | 5.3mm |
| Forward Current | 10A |
| Height | 5.3mm |
| Lead Free | Lead Free |
| Length | 9.5mm |
| Max Forward Surge Current (Ifsm) | 200A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 45V |
| Max Reverse Current | 300uA |
| Max Reverse Voltage (DC) | 45V |
| Mount | Through Hole |
| Package Quantity | 1200 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 200A |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SBR® |
| Weight | 0.038801oz |
| Width | 5.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes SBR10U45SD1-T Datasheet
Download the complete datasheet for Diodes SBR10U45SD1-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

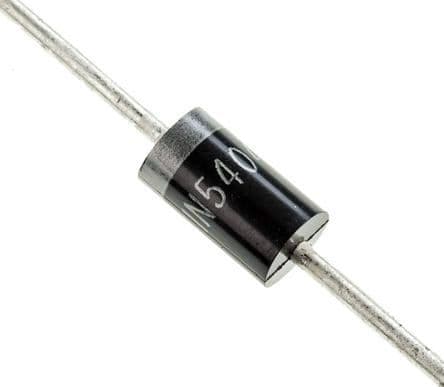

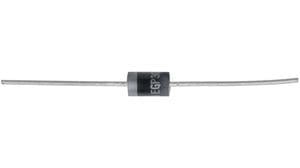

Product Images
