Diodes
SDMP0340LST-7-F
Rectifier Diode, Schottky, 2 Element, 0.03A, 40V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-3
PackageSOT-523
Capacitance2pF
Current Rating30mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes SDMP0340LST-7-F technical specifications.
General
Average Rectified Current
30mA
Capacitance
2pF
Package/Case
SOT-523
Current Rating
30mA
Forward Current
30mA
Height
0.75mm
Lead Free
Lead Free
Length
1.6mm
Max Forward Surge Current (Ifsm)
200mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
40V
Max Reverse Current
1uA
Max Reverse Voltage (DC)
40V
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
200mA
Radiation Hardening
No
RoHS Compliant
Yes
DC Rated Voltage
40V
Weight
7.1E-05oz
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Diodes SDMP0340LST-7-F Datasheet
Download the complete datasheet for Diodes SDMP0340LST-7-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

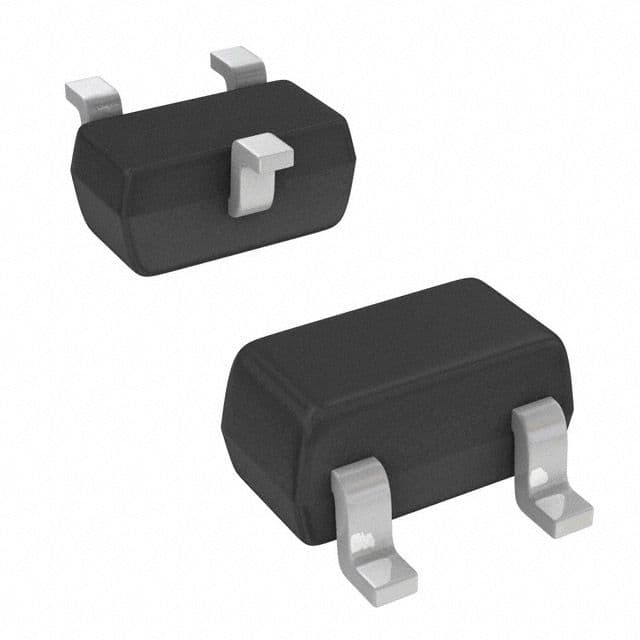

Product Images
