Unidirectional transient voltage suppressor diode with 600W peak pulse power and 18V reverse standoff voltage. Features a 20V minimum breakdown voltage, 29.2V clamping voltage, and 5uA leakage current. This silicon diode, designed for surface mounting in an SMB package, offers a 600pF capacitance and operates from -55°C to 150°C.
PackageSMB
Capacitance600pF
Voltage Rating18V
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes SMBJ18A-13-F technical specifications.
General
Capacitance
600pF
Package/Case
SMB
Clamping Voltage
29.2V
Clamping Voltage-Max
29.2V
Diode Element Material
SILICON
Diode Type
ZENER
Direction
Unidirectional
Height
2.62mm
JESD-30 Code
R-PDSO-C2
Lead Free
Contains Lead
Leakage Current
5uA
Length
4.57mm
Max Breakdown Voltage
23.3V
Min Breakdown Voltage
20V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Output Current
20.5A
Max Power Dissipation
600W
Max Reverse Leakage Current
5uA
Max Surge Current
20.5A
Moisture Sensitivity Level
1
Mount
Surface Mount
Number of Elements
1
Number of Unidirectional Channels
1
Package Body Material
Plastic
Package Quantity
3000
Package Shape
Rectangular
Packaging
Tape and Reel
Peak Pulse Current
20.5A
Peak Pulse Power
600W
Peak Reflow Temperature (Cel)
245°C
Polarity
Unidirectional
Power Dissipation
600W
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
20V
Reverse Standoff Voltage
18V
RoHS Compliant
Yes
Series
SMBJ
Surface Mount
Yes
Technology
AVALANCHE
Terminal Finish
Tin
Terminal Form
C BEND
Terminal Position
DUAL
Termination
SMD/SMT
Time @ Peak Reflow Temperature-Max (s)
5s
DC Rated Voltage
18V
Width
3.9mm
Working Voltage
18V
Compliance
RoHS
Compliant
Datasheet
Diodes SMBJ18A-13-F Datasheet
Download the complete datasheet for Diodes SMBJ18A-13-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

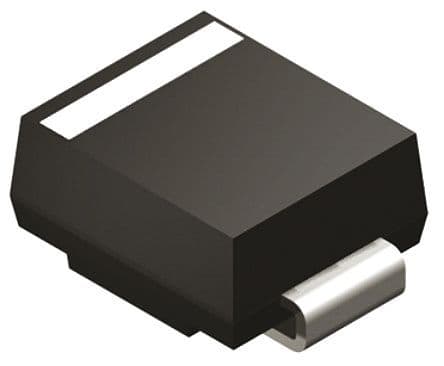

Product Images
