Bidirectional transient voltage suppressor diode, 600W peak pulse power, 36V reverse standoff voltage, and 40V minimum breakdown voltage. Features a 58.1V clamping voltage and 5uA leakage current. This silicon diode is housed in an SMB package for surface mounting, operating from -55°C to 150°C.
PackageSMB
Voltage Rating36V
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Technical Specifications
Diodes SMBJ36CA-13-F technical specifications.
General
Package/Case
SMB
Clamping Voltage
58.1V
Clamping Voltage-Max
58.1V
Diode Element Material
SILICON
Diode Type
ZENER
Direction
Bidirectional
Height
2.62mm
JESD-30 Code
R-PDSO-C2
Lead Free
Contains Lead
Leakage Current
5uA
Length
4.57mm
Max Breakdown Voltage
46V
Min Breakdown Voltage
40V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
600W
Max Reverse Leakage Current
5uA
Max Surge Current
10.3A
Moisture Sensitivity Level
1
Mount
Surface Mount
Number of Bidirectional Channels
1
Number of Elements
1
Package Body Material
Plastic
Package Quantity
3000
Package Shape
Rectangular
Packaging
Tape and Reel
Peak Pulse Current
10.3A
Peak Pulse Power
600W
Peak Reflow Temperature (Cel)
245°C
Polarity
Bidirectional
Power Dissipation
600W
Power Line Protection
No
Radiation Hardening
No
Reverse Breakdown Voltage
40V
Reverse Standoff Voltage
36V
RoHS Compliant
Yes
Series
SMBJ
Surface Mount
Yes
Technology
AVALANCHE
Terminal Finish
Tin
Terminal Form
C BEND
Terminal Position
DUAL
Termination
SMD/SMT
Time @ Peak Reflow Temperature-Max (s)
5s
DC Rated Voltage
36V
Width
3.9mm
Working Voltage
36V
Compliance
RoHS
Compliant
Datasheet
Diodes SMBJ36CA-13-F Datasheet
Download the complete datasheet for Diodes SMBJ36CA-13-F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

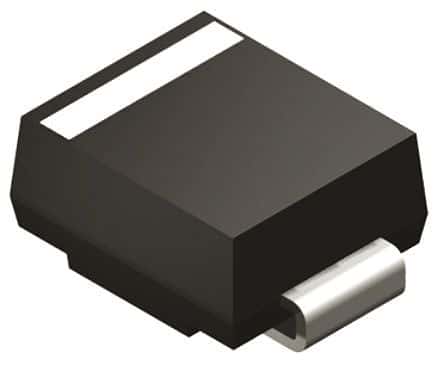

Product Images
