Diodes
UDZ3V6B-7
Zener Diode, 3.6V V(Z), 3.29%, 0.2W, Silicon, Unidirectional, ULTRA SMALL, PLASTIC PACKAGE-2
PackageSOD-323-2
MountingSurface Mount
Quick Jump:
Technical Specifications
Diodes UDZ3V6B-7 technical specifications.
General
Package/Case
SOD-323-2
Height
1.05mm
Impedance
100R
Length
2.5mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
200mW
Max Reverse Current
10uA
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
RoHS Compliant
Yes
Tolerance
3%
Voltage Tolerance
3%
Weight
0.000173oz
Width
1.3mm
Zener Current
10uA
Zener Voltage
3.6V
Compliance
RoHS
Compliant
Datasheet
Diodes UDZ3V6B-7 Datasheet
Download the complete datasheet for Diodes UDZ3V6B-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

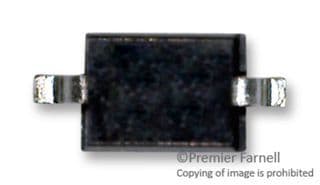

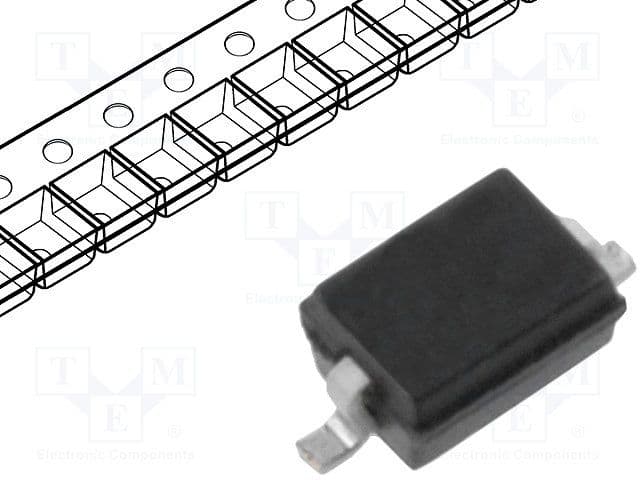

Product Images
