General purpose rectifier diode featuring 1A average rectified current and 100V repetitive reverse voltage. This silicon diode offers a 1A forward current and a 30A peak non-repetitive surge current. Housed in a DO-41 plastic package with through-hole mounting, it operates from -65°C to 150°C and has a capacitance of 20pF. The device is RoHS compliant.
PackageDO-41
Capacitance20pF
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Diodes UF1002-T technical specifications.
General
Average Rectified Current
1A
Capacitance
20pF
Package/Case
DO-41
Current Rating
1A
Diameter
2.72mm
Forward Current
1A
Height
2.72mm
Lead Free
Exempt
Length
5.21mm
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
100V
Max Reverse Current
5uA
Max Reverse Voltage (DC)
100V
Max Surge Current
30A
Mount
Through Hole
Output Current
1A
Package Quantity
5000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
30A
Polarity
Standard
Radiation Hardening
No
Reverse Recovery Time
50ns
Reverse Voltage (DC)
100V
RoHS Compliant
Yes
DC Rated Voltage
100V
Weight
0.010582oz
Width
2.72mm
Compliance
RoHS
Compliant
Datasheet
Diodes UF1002-T Datasheet
Download the complete datasheet for Diodes UF1002-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

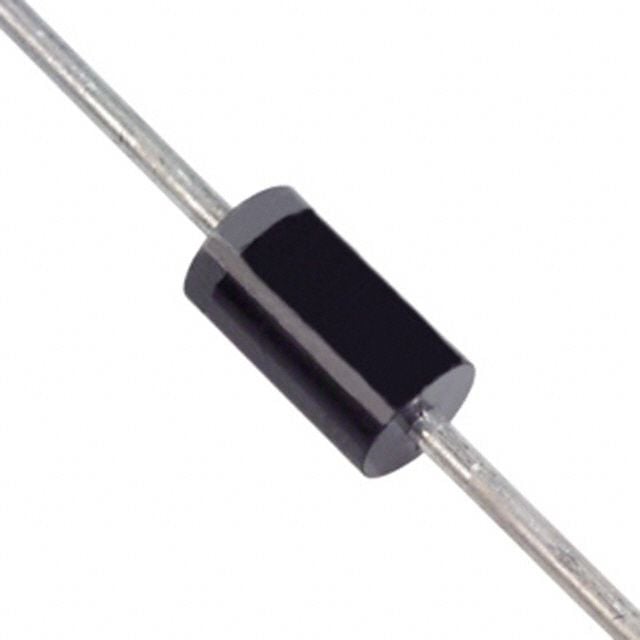

Product Images
