PNP bipolar transistor in a TO-92 package, suitable for through-hole mounting. Features a maximum collector-emitter voltage of 500V, a continuous collector current of -150mA, and a transition frequency of 60MHz. Operates across a temperature range of -55°C to 150°C with a maximum power dissipation of 1W. This component is lead-free, RoHS compliant, and REACH SVHC compliant.
PackageTO-92
Current Rating-150mA
MountingThrough Hole
PolarityPNP
Quick Jump:
Technical Specifications
Diodes ZTX560STZ technical specifications.
General
Package/Case
TO-92
Collector Base Voltage (VCBO)
-500V
Collector Emitter Breakdown Voltage
500V
Collector Emitter Saturation Voltage
-500mV
Collector-emitter Voltage-Max
500mV
Continuous Collector Current
-150mA
Current Rating
-150mA
Emitter Base Voltage (VEBO)
-5V
Gain Bandwidth Product
60MHz
Height
4.01mm
Lead Free
Lead Free
Length
4.77mm
Max Collector Current
150mA
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
1W
Mount
Through Hole
Package Quantity
2000
Packaging
Tape and Reel
Polarity
PNP
Radiation Hardening
No
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Transition Frequency
60MHz
DC Rated Voltage
-500V
Width
2.41mm
Compliance
RoHS
Compliant
Datasheet
Diodes ZTX560STZ Datasheet
Download the complete datasheet for Diodes ZTX560STZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

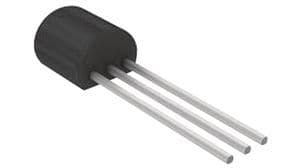

Product Images
