NPN bipolar junction transistor featuring a 45V collector-emitter breakdown voltage and 2A continuous collector current. This silicon transistor offers a maximum power dissipation of 1W and a transition frequency of 150MHz. Packaged in a TO-92 through-hole mount, it operates within a temperature range of -55°C to 200°C and is RoHS compliant.
Frequency150MHz
PackageTO-92
MountingThrough Hole
PolarityNPN
Quick Jump:
Technical Specifications
Diodes ZTX690B technical specifications.
General
| Package/Case | TO-92 |
| Collector Base Voltage (VCBO) | 45V |
| Collector Emitter Breakdown Voltage | 45V |
| Collector Emitter Saturation Voltage | 500mV |
| Collector Emitter Voltage (VCEO) | 45V |
| Collector-emitter Voltage-Max | 500mV |
| Continuous Collector Current | 2A |
| Emitter Base Voltage (VEBO) | 5V |
| Frequency | 150MHz |
| Gain Bandwidth Product | 150MHz |
| Height | 4.01mm |
| hFE Min | 400 |
| Lead Free | Lead Free |
| Length | 4.77mm |
| Max Collector Current | 2A |
| Max Frequency | 150MHz |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1W |
| Mount | Through Hole |
| Number of Elements | 1 |
| Package Quantity | 4000 |
| Packaging | Bulk |
| Polarity | NPN |
| Power Dissipation | 1W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Transition Frequency | 150MHz |
| DC Rated Voltage | 45V |
| Weight | 0.016oz |
| Width | 2.41mm |
Compliance
| RoHS | Compliant |
Datasheet
Diodes ZTX690B Datasheet
Download the complete datasheet for Diodes ZTX690B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

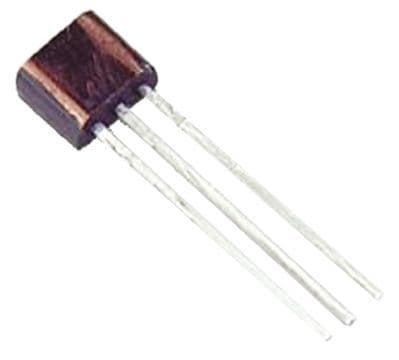

Product Images
