Technical Specifications
Diodes ZVN3306ASTOA technical specifications.
General
| Package/Case | TO-92-3 |
| Continuous Drain Current (ID) | 270mA |
| Drain to Source Resistance | 5R |
| Drain to Source Voltage (Vdss) | 60V |
| Fall Time | 7ns |
| Gate to Source Voltage (Vgs) | 20V |
| Input Capacitance | 35pF |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 625mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Package Quantity | 4000 |
| Packaging | Bulk |
| Polarity | N-CHANNEL |
| Rds On Max | 5R |
| RoHS Compliant | No |
| Turn-Off Delay Time | 6ns |
| Turn-On Delay Time | 5ns |
| Weight | 0.016oz |
Compliance
| RoHS | Not Compliant |
Datasheet
Diodes ZVN3306ASTOA Datasheet
Download the complete datasheet for Diodes ZVN3306ASTOA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

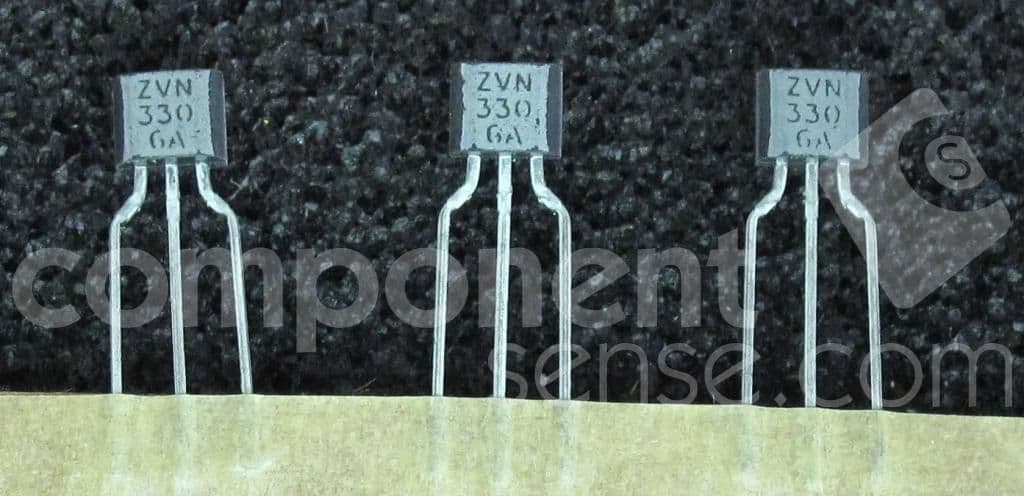

Product Images
