P-channel JFET with 60V drain-source voltage and 160mA continuous drain current. Features 14 Ohm drain-source on-resistance, 8ns fall time, and 8ns turn-on/off delay. This through-hole mounted component operates from -55°C to 150°C with 625mW power dissipation. Housed in a TO-92 package, it offers a threshold voltage of -3.5V and 50pF input capacitance.
PackageTO-92-3
Current Rating-160mA
MountingThrough Hole
PolarityP-CHANNEL
Quick Jump:
Technical Specifications
Diodes ZVP3306A technical specifications.
General
Package/Case
TO-92-3
Continuous Drain Current (ID)
160mA
Current Rating
-160mA
Drain to Source Resistance
14R
Drain to Source Voltage (Vdss)
60V
Drain-source On Resistance-Max
14R
Fall Time
8ns
Gate to Source Voltage (Vgs)
20V
Height
4.01mm
Input Capacitance
50pF
Lead Free
Lead Free
Length
4.77mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
625mW
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Package Quantity
4000
Packaging
Bulk
Polarity
P-CHANNEL
Power Dissipation
625mW
Radiation Hardening
No
Rds On Max
14R
Reach SVHC Compliant
No
RoHS Compliant
Yes
Threshold Voltage
-3.5V
Turn-Off Delay Time
8ns
Turn-On Delay Time
8ns
DC Rated Voltage
-60V
Weight
0.016oz
Width
2.41mm
Compliance
RoHS
Compliant
Datasheet
Diodes ZVP3306A Datasheet
Download the complete datasheet for Diodes ZVP3306A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

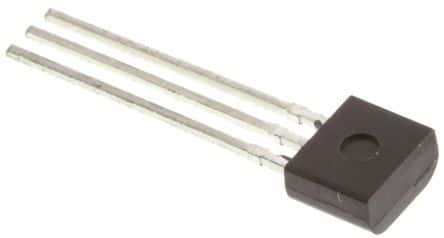

Product Images
