Frequency100MHz
PackageSOT-23
MountingSurface Mount
PolarityPNP
Quick Jump:
Technical Specifications
Diotec BC860C technical specifications.
General
Package/Case
SOT-23
Collector Base Voltage (VCBO)
50V
Collector Emitter Voltage (VCEO)
45V
Emitter Base Voltage (VEBO)
5V
Frequency
100MHz
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Elements
1
Packaging
Tape and Reel
Polarity
PNP
Power Dissipation
250mW
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Diotec BC860C Datasheet
Download the complete datasheet for Diotec BC860C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

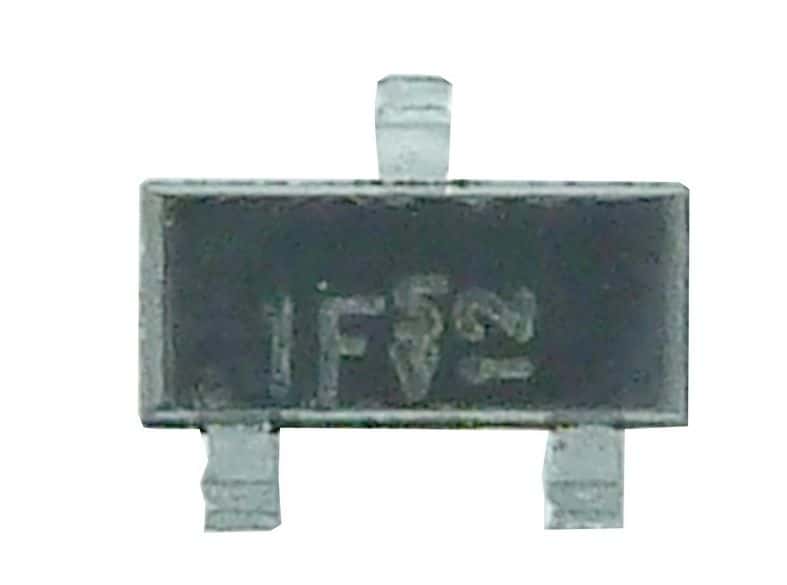

Product Images
