Diotec
BZX84C3V6
Zener Voltage V = 3.8 / Zener Current mA = 79 / Configuration = Single / Zener Impedance Ohm = 90 / Power Dissipation (Pd) mW = 300 / Reverse Current uA = 5 / Zener Tolerance % = 5 / Operating Temperature Min. °C = -50 / Operating Temperature Max. °C = 150 / Package Type = SOT-23 / Pins = 3 / Mounting Type = Surface Mount / MSL = Level-1 / Packaging = Tape & Reel / Automotive Qualification Standard = AEC-Q101 / Reflow Temperature Max. °C = 260 / Thermal Resistance K/W = 420
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Diotec BZX84C3V6 technical specifications.
General
| Package/Case | SOT-23 |
| Element Configuration | Single |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -50°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Voltage Tolerance | 5% |
| Zener Voltage | 3.6V |
Compliance
| RoHS | Compliant |
Datasheet
Diotec BZX84C3V6 Datasheet
Download the complete datasheet for Diotec BZX84C3V6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

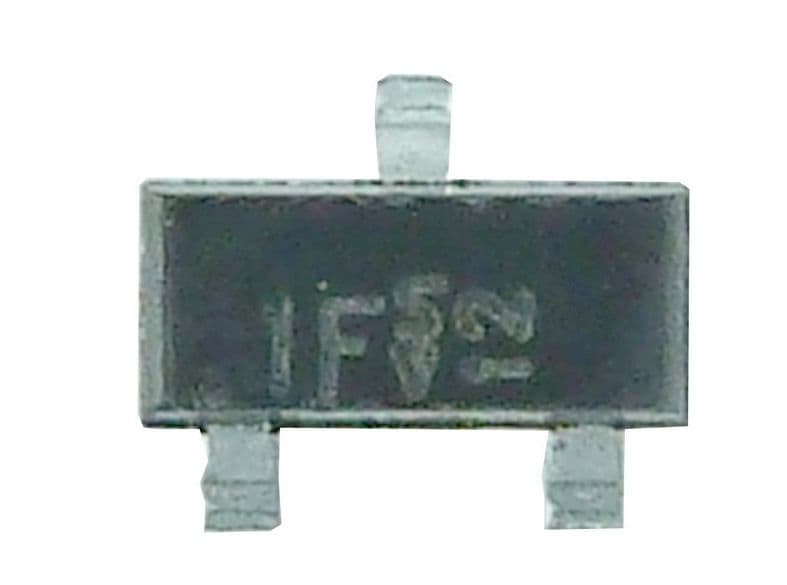

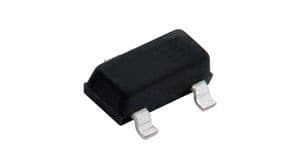

Product Images
