Diotec
P4SMAJ24CA

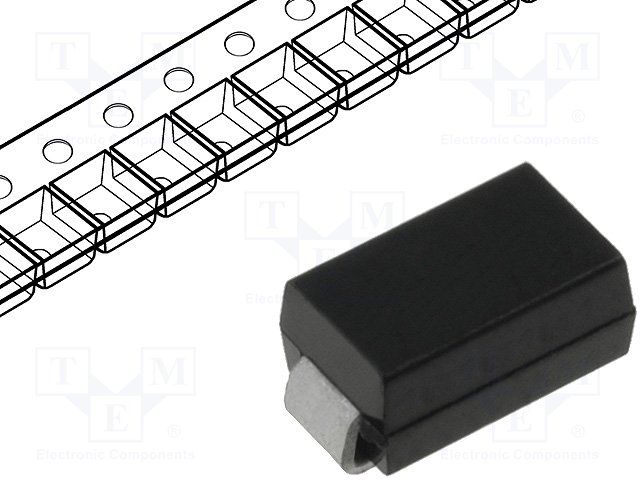

Trans Voltage Suppressor Diode, 400W, 24V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AC, ROHS COMPLIANT, PLASTIC, SMA, 2 PIN
PackageSMA
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Technical Specifications
Diotec P4SMAJ24CA technical specifications.
General
| Package/Case | SMA |
| Clamping Voltage | 38.9V |
| Leakage Current | 5uA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -50°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 10.3A |
| Peak Pulse Power | 400W |
| Polarity | Bidirectional |
| Reverse Breakdown Voltage | 26.7V |
| Reverse Standoff Voltage | 24V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
