Technical Specifications
Diotec P6KE440A technical specifications.
General
| Clamping Voltage | 602V |
| Leakage Current | 5uA |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Packaging | Ammo Pack |
| Peak Pulse Current | 1A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Reverse Breakdown Voltage | 418V |
| Reverse Standoff Voltage | 376V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Diotec P6KE440A Datasheet
Download the complete datasheet for Diotec P6KE440A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

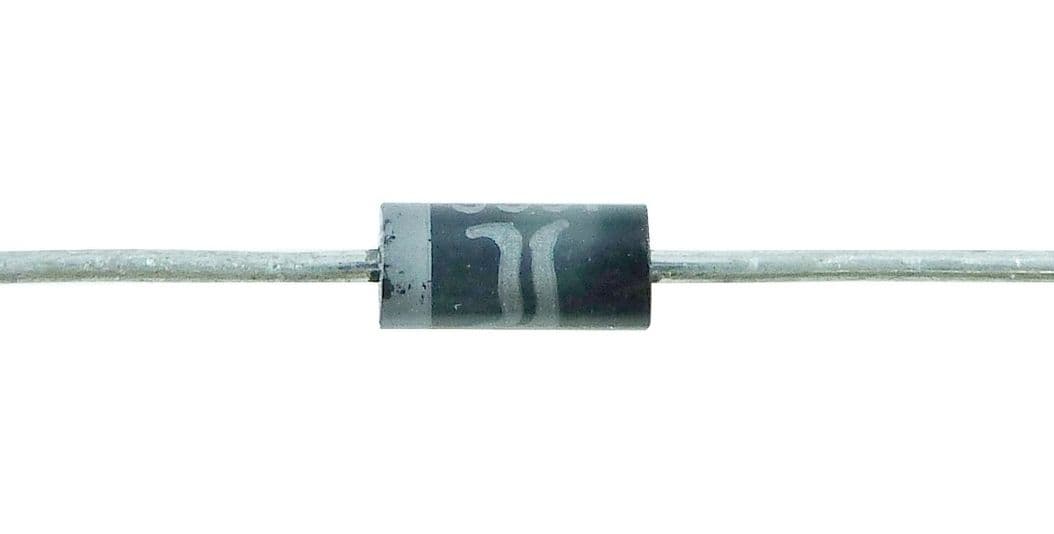

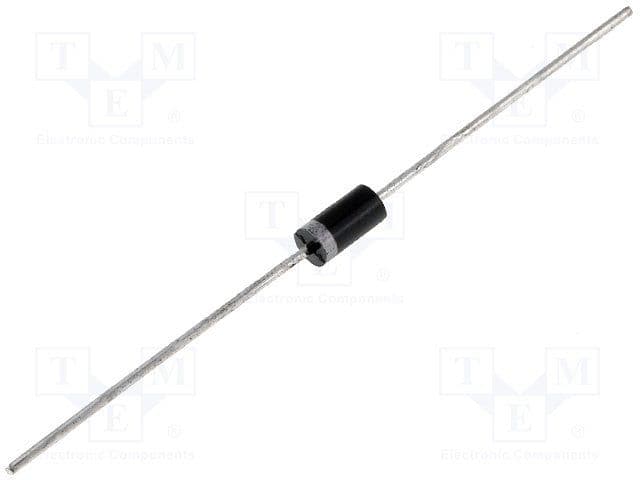

Product Images
