Single element, general purpose rectifier diode in SMB package. Designed for surface mount applications, this component operates across a wide temperature range from -50°C to 150°C. It features a peak non-repetitive surge current capability of 55A and is supplied on tape and reel for efficient manufacturing. This RoHS compliant diode is ideal for various rectification needs.
PackageSMB
MountingSurface Mount
Quick Jump:
Technical Specifications
Diotec S2A technical specifications.
General
| Package/Case | SMB |
| Element Configuration | Single |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -50°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 55A |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Diotec S2A Datasheet
Download the complete datasheet for Diotec S2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

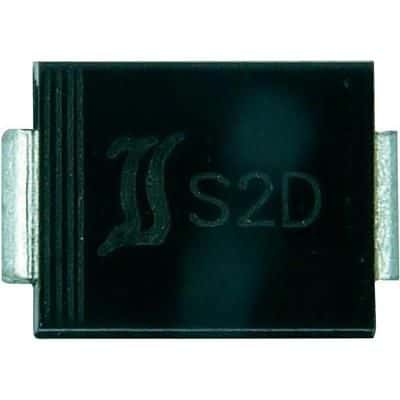

Product Images
