Display Elektronik
DEM16101SYH
Display Size (Width) mm = 13.8 / Backlight Colour = No Backlight / LCD Display Type = STN / Character Height mm = 5.95 / Font Set = English / Font Set = Japanese / Display Appearance = Green / Yellow / Width mm = 36 / Interface Type = 8-Bit MCU / Interface Type = Parallel / Length mm = 80 / Height mm = 9 / Power Supply Min. V = 4.5 / Power Supply Max. V = 5.5 / Resolution = 1 x 16 / Reflector Type = Reflective / Display Size (Length) mm = 63.5
Display Size (Width) mm = 13.8 / Backlight Colour = No Backlight / LCD Display Type = STN / Character Height mm = 5.95 / Font Set = English / Font Set = Japanese / Display Appearance = Green / Yellow / Width mm = 36 / Interface Type = 8-Bit MCU / Interface Type = Parallel / Length mm = 80 / Height mm = 9 / Power Supply Min. V = 4.5 / Power Supply Max. V = 5.5 / Resolution = 1 x 16 / Reflector Type = Reflective / Display Size (Length) mm = 63.5
Quick Jump:
Technical Specifications
Display Elektronik DEM16101SYH technical specifications.
General
| Interface | Parallel |
| Resolution (height) | 16pixel |
| Resolution (width) | 1pixel |
Compliance
| RoHS | Compliant |
Datasheet
Display Elektronik DEM16101SYH Datasheet
Download the complete datasheet for Display Elektronik DEM16101SYH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

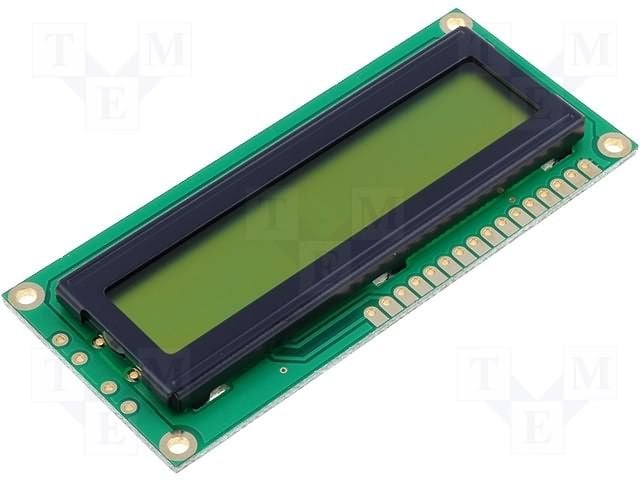

Product Images
