Display Elektronik
DEM20231SYH-PY-CYR22
Display Size (Width) mm = 18.6 / Backlight Colour = Green / Yellow / LCD Display Type = STN / Character Height mm = 5.55 / Font Set = Cyrillic / Font Set = English / Display Appearance = Green / Yellow / Width mm = 37 / Interface Type = 8-Bit MCU / Interface Type = Parallel / Length mm = 116 / Height mm = 12 / Power Supply Min. V = 4.7 / Power Supply Max. V = 5.3 / Resolution = 2 x 20 / Reflector Type = Transflective / Display Size (Length) mm = 83
Quick Jump:
Technical Specifications
Display Elektronik DEM20231SYH-PY-CYR22 technical specifications.
General
Backlight Type
LED
Interface
Parallel
Resolution (height)
20pixel
Resolution (width)
2pixel
Compliance
RoHS
Compliant
Datasheet
Display Elektronik DEM20231SYH-PY-CYR22 Datasheet
Download the complete datasheet for Display Elektronik DEM20231SYH-PY-CYR22 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

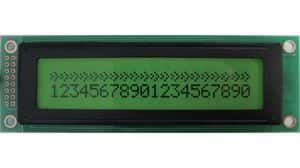

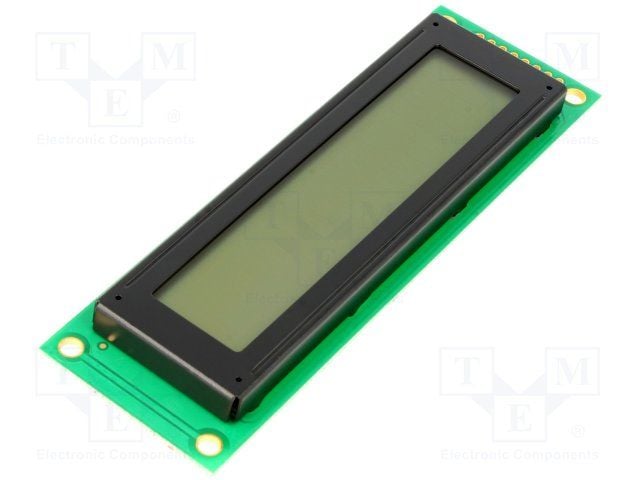

Product Images
