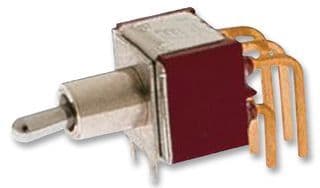

DPDT toggle switch featuring PC pin termination for through-hole mounting with a right-angle orientation. Offers a 5A rating at 250VAC and 28VDC, with a silver-plated copper contact material and a brass, chrome-plated round lever actuator. Designed for 40,000 electrical cycles, this switch operates within a -30°C to 85°C temperature range and is RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
E-Switch 100DP1T2B4M6QE technical specifications.
General
Actuator Length
6.46mm
Actuator Material
Brass, Chrome
Actuator Type
Standard Round
Contact Material
Copper, Silver
Contact Plating
Silver
Electrical Life
40000Cycles
Illumination Type
Illuminated, Non-Illuminated
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Mount
Through Hole
Orientation
Right Angle
Packaging
Bulk
RoHS Compliant
Yes
Series
100
Switch Function
On-On
Termination
PC Pin
Throw Configuration
DPDT
Voltage Rating (AC)
120V
DC Rated Voltage
28V
Compliance
RoHS
Compliant
Datasheet
E-Switch 100DP1T2B4M6QE Datasheet
Download the complete datasheet for E-Switch 100DP1T2B4M6QE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
