Technical Specifications

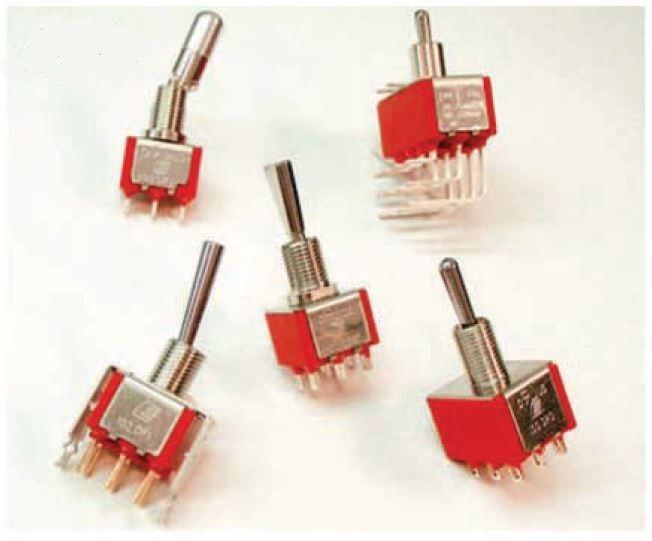

E-Switch 100DP3T5B4M2QE technical specifications.
General
| Actuator Length | 23.12mm |
| Actuator Material | Brass, Chrome |
| Actuator Type | Standard Round |
| Contact Plating | Silver |
| Current Rating | 5A |
| Electrical Life | 40000Cycles |
| Illumination Type | Non-Illuminated |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | No |
| Series | 100 |
| Switch Function | On-Off-On |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 120V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Not Compliant |
Datasheet
E-Switch 100DP3T5B4M2QE Datasheet
Download the complete datasheet for E-Switch 100DP3T5B4M2QE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
