SPST, non-illuminated, vertical mount specialty switch with a 25mA contact current rating and 50VDC rated voltage. Features a polycarbonate actuator, silver-plated copper contacts, and a solder terminal for through-hole mounting. Offers a mechanical life of 1,000,000 cycles, an operating force of 135gf, and a switch travel of 0.6mm. Operates within a temperature range of -20°C to 70°C.
Storage12.4mm
Current Rating25mA
MountingThrough Hole
Quick Jump:
Technical Specifications
E-Switch 320.02E11.08GRY technical specifications.
General
Actuator Material
PC, Polycarbonate
Color
Grey
Contact Current Rating
25mA
Contact Material
Copper, Silver
Contact Plating
Silver
Current Rating
25mA
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Length
12.5mm
Max Operating Temperature
70°C
Mechanical Life
1000000Cycles
Min Operating Temperature
-20°C
Mount
Through Hole
Operating Force
135gf
Orientation
Vertical
Packaging
Bulk
RoHS Compliant
Yes
Series
320
Size
12.4mm
Switch Function
Off-Mom
Switch Travel
0.6mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
50V
Width
12.5mm
Compliance
RoHS
Compliant
Datasheet
E-Switch 320.02E11.08GRY Datasheet
Download the complete datasheet for E-Switch 320.02E11.08GRY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

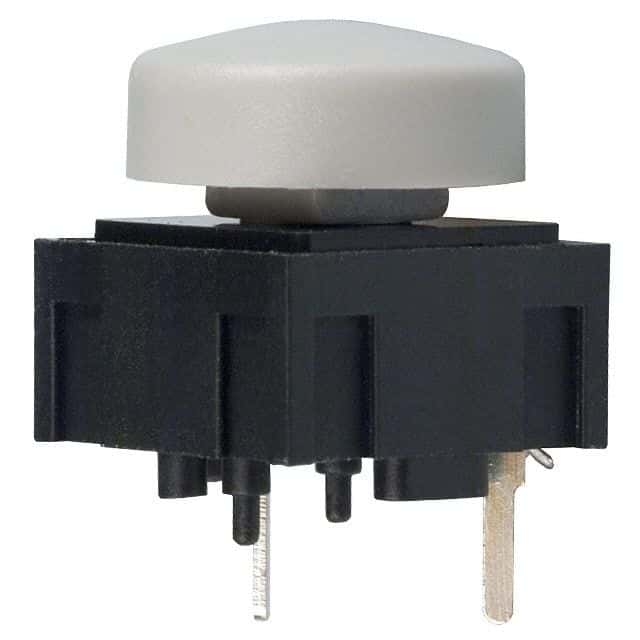

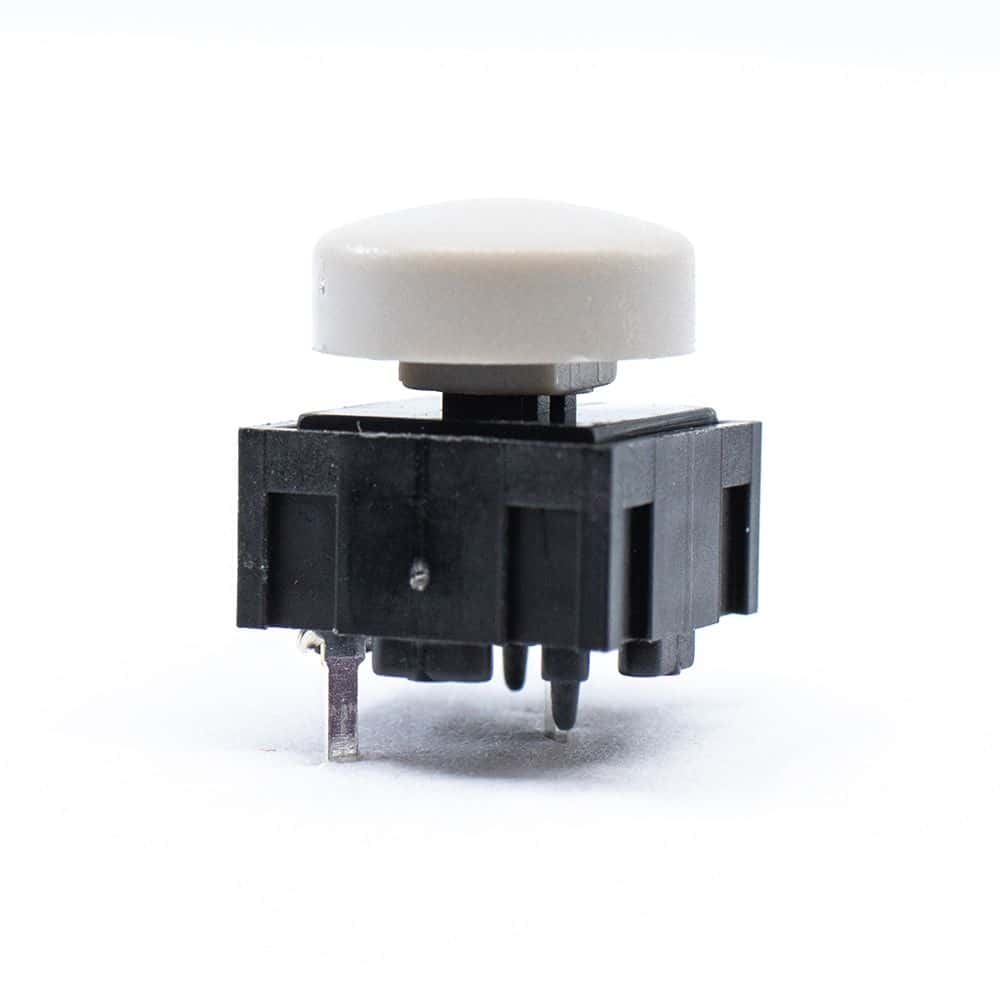

Product Images
