Technical Specifications
E-Switch 500SSP3S2M1QEA technical specifications.
General
| Actuator Length | 7.24mm |
| Actuator Material | Nylon, Polyamide |
| Actuator Type | Standard |
| Contact Material | Copper Alloy |
| Contact Plating | Silver |
| Electrical Life | 30000Cycles |
| Max Operating Temperature | 85°C |
| Mechanical Life | 30000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Panel |
| Packaging | Bulk |
| RoHS Compliant | No |
| Series | 500 |
| Switch Function | On-Off-On |
| Switch Travel | 2.16mm |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 120V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Not Compliant |
Datasheet
E-Switch 500SSP3S2M1QEA Datasheet
Download the complete datasheet for E-Switch 500SSP3S2M1QEA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

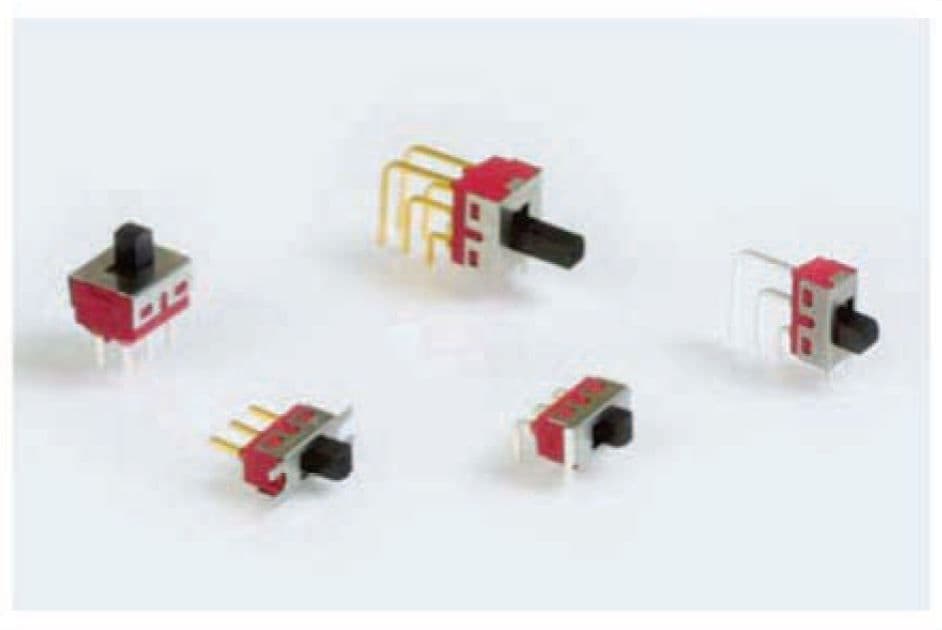

Product Images
