Technical Specifications
E-Switch 700SP7B10M1QEH technical specifications.
General
| Contact Current Rating | 3A |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 3A |
| Electrical Life | 50000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Mechanical Life | 50000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Panel |
| Orientation | Vertical |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | 700 |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 120V |
| DC Rated Voltage | 28V |
Compliance
| RoHS | Compliant |
Datasheet
E-Switch 700SP7B10M1QEH Datasheet
Download the complete datasheet for E-Switch 700SP7B10M1QEH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

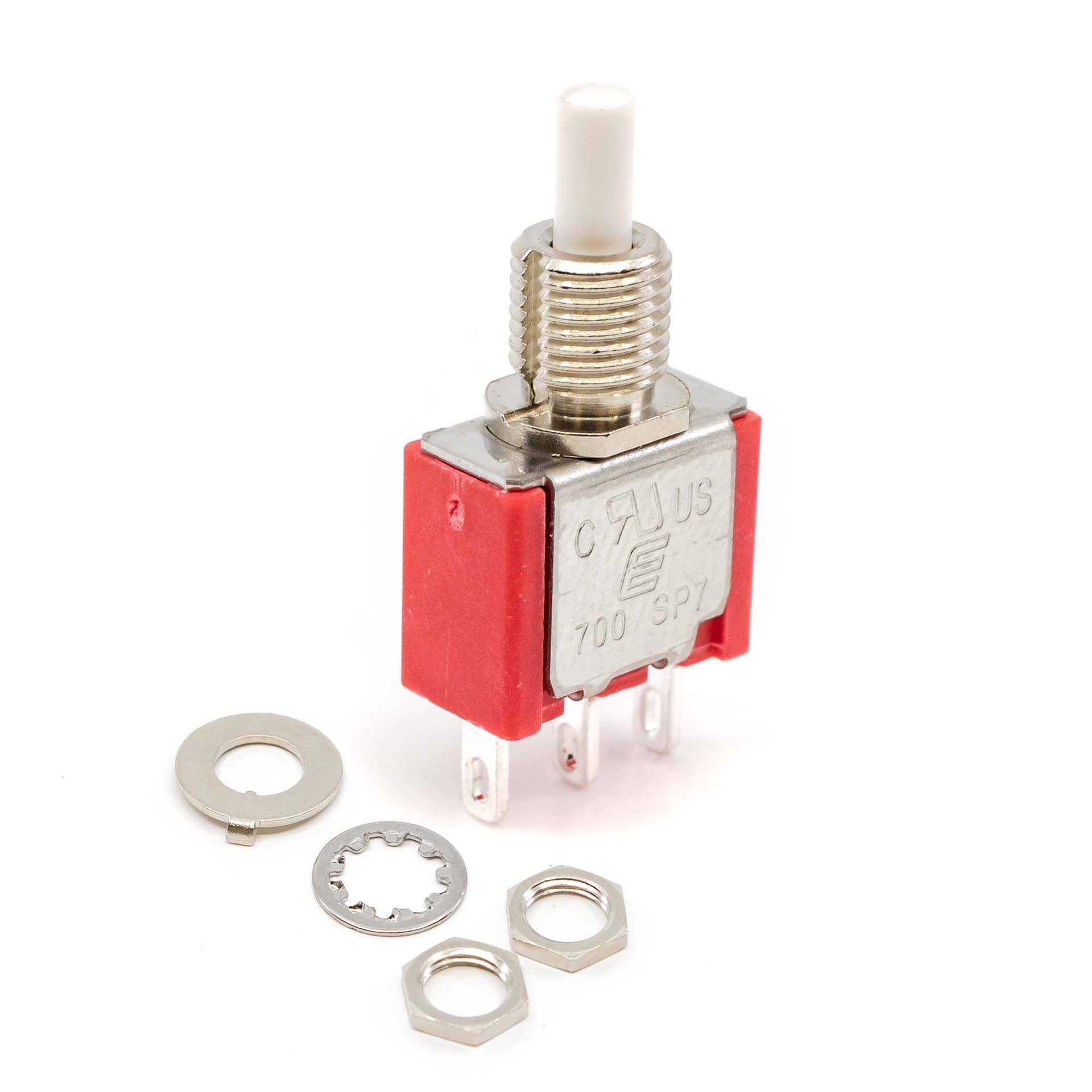

Product Images
