Technical Specifications
E-Switch 700SP7B20M7QE technical specifications.
General
| Contact Material | Copper Alloy |
| Contact Plating | Silver |
| Current Rating | 1A |
| Electrical Life | 50000Cycles |
| Lead Free | Lead Free |
| Length | 12.7mm |
| Max Operating Temperature | 85°C |
| Mechanical Life | 50000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Through Hole, Vertical |
| Orientation | Vertical |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | 700 |
| Switch Function | On-Mom |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 120V |
| DC Rated Voltage | 28V |
| Width | 6.86mm |
Compliance
| RoHS | Compliant |
Datasheet
E-Switch 700SP7B20M7QE Datasheet
Download the complete datasheet for E-Switch 700SP7B20M7QE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

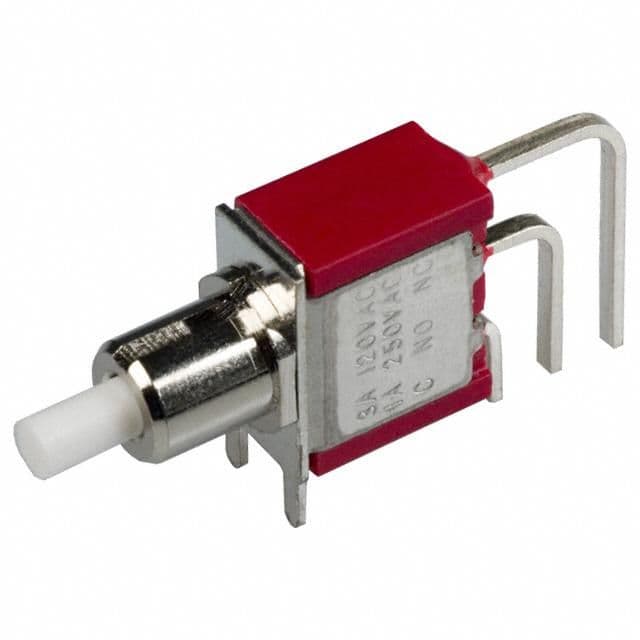

Product Images
