Technical Specifications
E-Switch 800SP9B6M2RE technical specifications.
General
| Contact Current Rating | 3A |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Electrical Life | 50000Cycles |
| Illumination Color | Red |
| Illumination Type | LED |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Mechanical Life | 50000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Through Hole |
| Orientation | Vertical |
| Packaging | Bulk |
| RoHS Compliant | No |
| Series | 800 |
| Switch Function | Off-Mom |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 20V |
| DC Rated Voltage | 20V |
Compliance
| RoHS | Not Compliant |
Datasheet
E-Switch 800SP9B6M2RE Datasheet
Download the complete datasheet for E-Switch 800SP9B6M2RE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

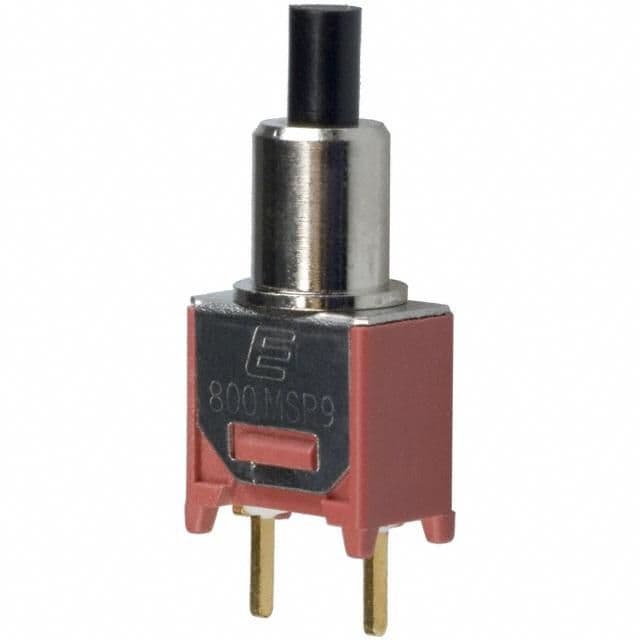

Product Images
