The 800SP9B7M6RE is a right angle SPST off-mom switch with a contact current rating of 3A and a maximum operating temperature of 85°C. It has a mechanical life of 50,000 cycles and an electrical life of 50,000 cycles. The switch is lead free and RoHS compliant, with a maximum voltage rating of 20V AC and DC. It is available in a through hole package.
MountingThrough Hole
Quick Jump:
Technical Specifications
E-Switch 800SP9B7M6RE technical specifications.
General
| Actuator Length | 3.56mm |
| Contact Current Rating | 3A |
| Contact Material | Copper Alloy |
| Contact Plating | Gold, Nickel |
| Electrical Life | 50000Cycles |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 20V |
| Max Voltage Rating (DC) | 20V |
| Mechanical Life | 50000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Through Hole |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | 800 |
| Switch Function | Off-Mom |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 20V |
| DC Rated Voltage | 20V |
Compliance
| RoHS | Compliant |
Datasheet
E-Switch 800SP9B7M6RE Datasheet
Download the complete datasheet for E-Switch 800SP9B7M6RE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

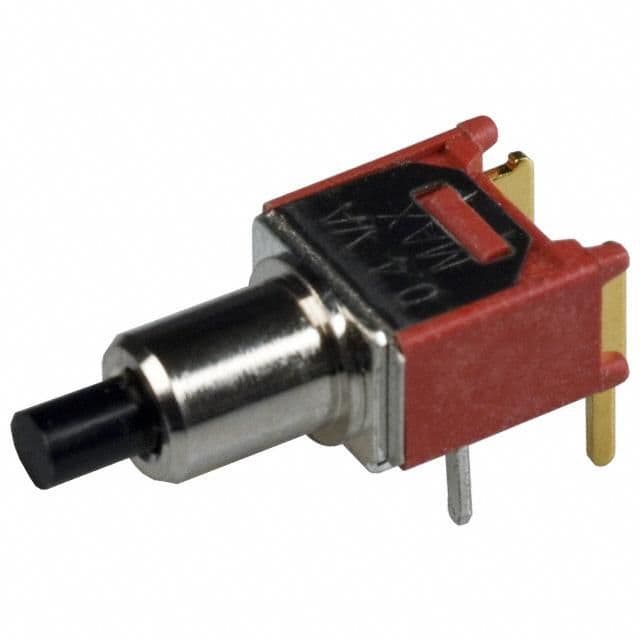

Product Images
