DPDT slide switch featuring PC pin termination and bracket mounting for through-hole applications. Offers a 2-position ON-ON function with a 200mA contact current rating at 30VDC. This non-illuminated switch boasts a 2mm travel and 200gf operating force, with a silver-plated copper alloy contact material for 10,000 electrical cycles. Operating temperature range is -20°C to 70°C, and it is RoHS compliant.
MountingThrough Hole, Brackets
Quick Jump:
Technical Specifications
E-Switch EG2208 technical specifications.
General
Actuator Length
4mm
Actuator Type
Standard
Contact Current Rating
200mA
Contact Material
Copper Alloy, Copper, Silver
Contact Plating
Silver
Electrical Life
10000Cycles
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Mount
Through Hole, Brackets
Number of Positions
2
Operating Force
200gf
Orientation
Right Angle
Package Quantity
800
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EG
Switch Function
On-On
Switch Travel
2mm
Termination
PC Pin
Throw Configuration
DPDT
Voltage Rating (AC)
30V
DC Rated Voltage
30V
Compliance
RoHS
Compliant
Datasheet
E-Switch EG2208 Datasheet
Download the complete datasheet for E-Switch EG2208 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

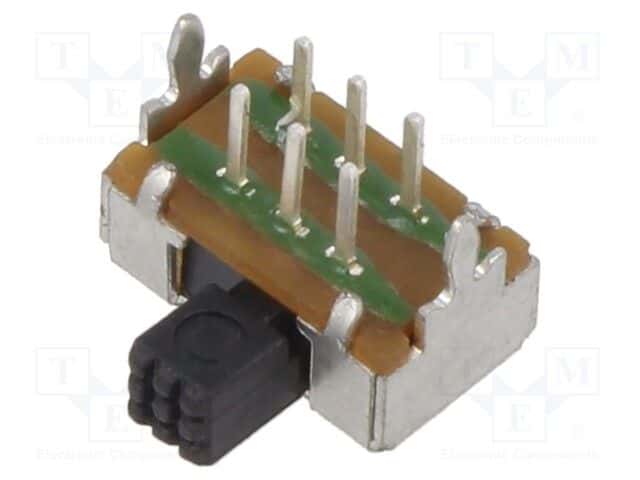

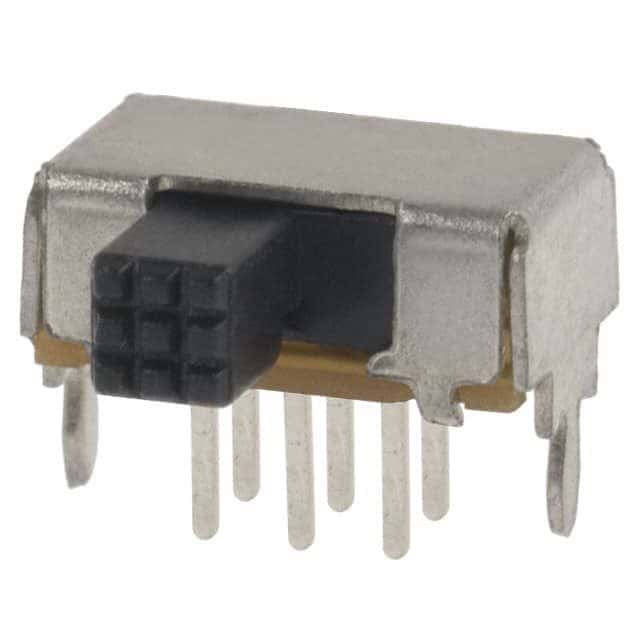

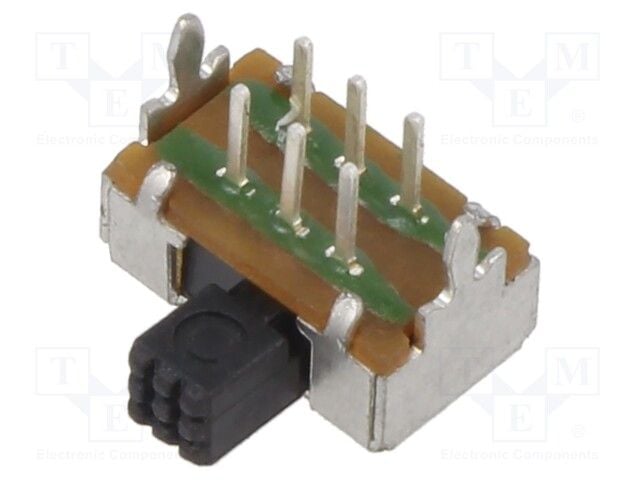

Product Images
