E-Switch
PS1024ABLK
Switch Push Button OFF (ON) SPST Round Button 3A 250VAC Momentary Contact Panel Mount Solder Lug
Current Rating3A
MountingPanel
Quick Jump:
Technical Specifications
E-Switch PS1024ABLK technical specifications.
General
Actuator Color
Black
Actuator Length
8.6mm
Actuator Type
Round, Button
Current Rating
3A
Electrical Life
6000Cycles
Lead Free
Lead Free
Max Operating Temperature
65°C
Max Voltage Rating (AC)
250V
Mechanical Life
6000Cycles
Min Operating Temperature
-20°C
Mount
Panel
Orientation
Straight
Packaging
Bulk
RoHS Compliant
Yes
Series
PS1024
Switch Function
Off-Mom
Termination
Solder
Throw Configuration
SPST
Voltage Rating (AC)
125V
Compliance
RoHS
Compliant
Datasheet
E-Switch PS1024ABLK Datasheet
Download the complete datasheet for E-Switch PS1024ABLK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

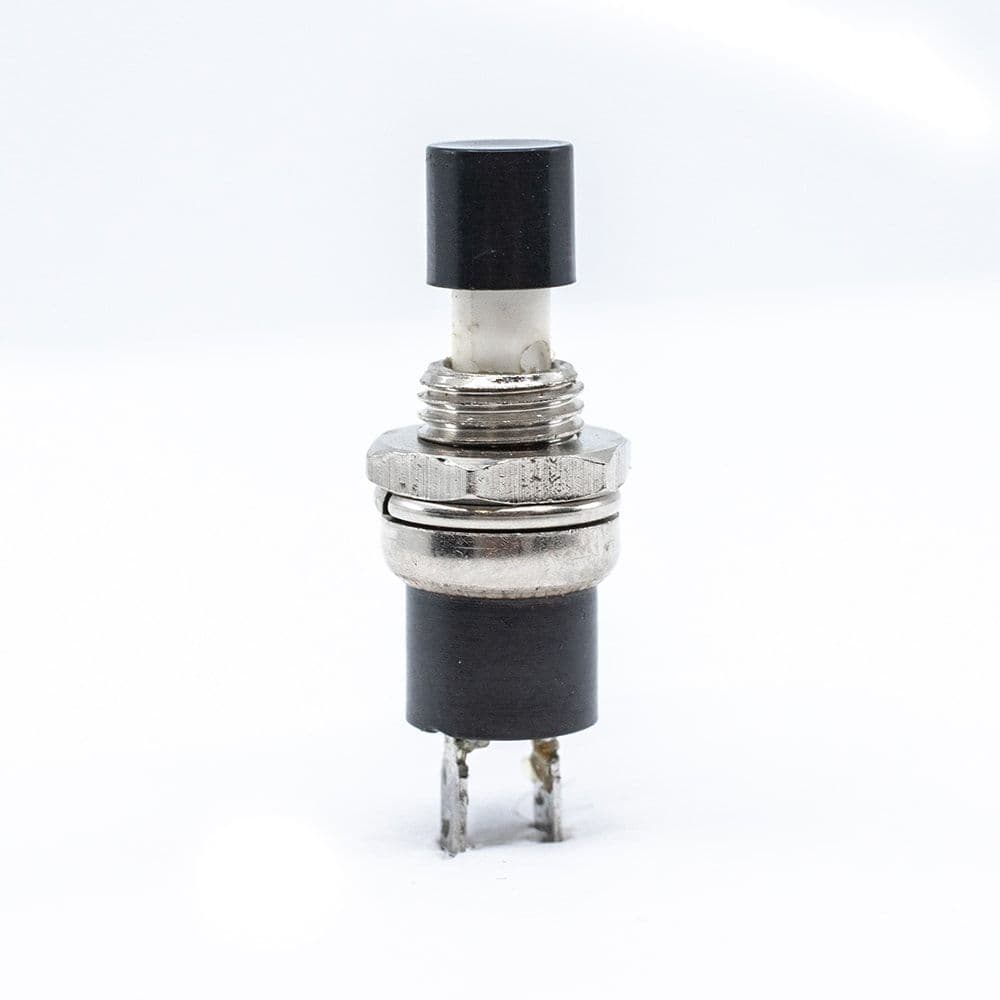

Product Images
