Technical Specifications
E-Switch PS1024AL-RED technical specifications.
General
Actuator Type
Round, Button
Contact Current Rating
3A
Current Rating
3A
Diameter
9.91mm
Electrical Life
6000Cycles
Illumination Color
Red
Illumination Type
LED
Lead Free
Lead Free
Max Operating Temperature
65°C
Mechanical Life
6000Cycles
Min Operating Temperature
-20°C
Mount
Panel
Orientation
Right Angle
Packaging
Bulk
Series
PS1024
Switch Function
Off-Mom
Termination
Solder
Throw Configuration
SPST
Voltage Rating (AC)
125V
Compliance
RoHS
Compliant
Datasheet
E-Switch PS1024AL-RED Datasheet
Download the complete datasheet for E-Switch PS1024AL-RED to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

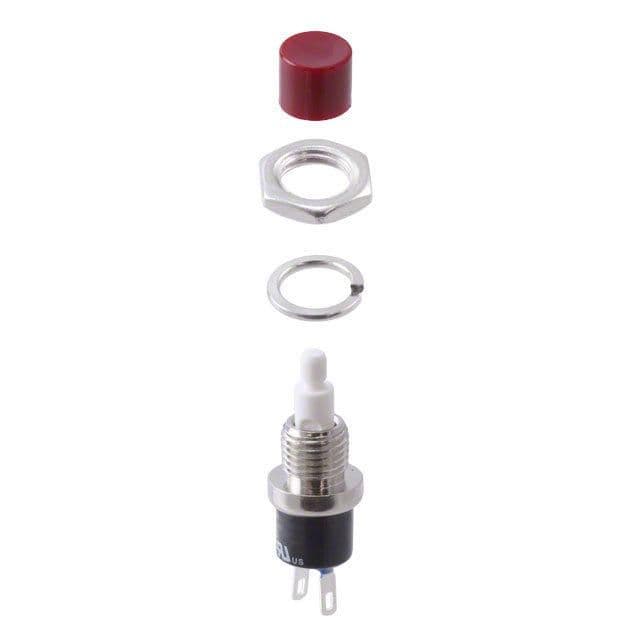

Product Images
