E-Switch
PS1024ARED
Switch Push Button OFF (ON) SPST Round Button 3A 250VAC Momentary Contact Solder Lug Panel Mount
Current Rating3A
MountingBushing, Panel
Quick Jump:
Technical Specifications
E-Switch PS1024ARED technical specifications.
General
Actuator Color
Red
Actuator Length
8.6mm
Actuator Type
Round, Button
Contact Current Rating
3A
Current Rating
3A
Diameter
6.1mm
Electrical Life
6000Cycles
Lead Free
Lead Free
Life (Hours)
6000Hour
Max Operating Temperature
65°C
Max Voltage Rating (AC)
250V
Mechanical Life
6000Cycles
Min Operating Temperature
-20°C
Mount
Bushing, Panel
Number of Positions
2
Orientation
Straight
Packaging
Bulk
RoHS Compliant
Yes
Series
PS1024
Switch Function
Off-Mom
Termination
Solder
Throw Configuration
SPST
Voltage Rating (AC)
125V
Compliance
RoHS
Compliant
Datasheet
E-Switch PS1024ARED Datasheet
Download the complete datasheet for E-Switch PS1024ARED to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

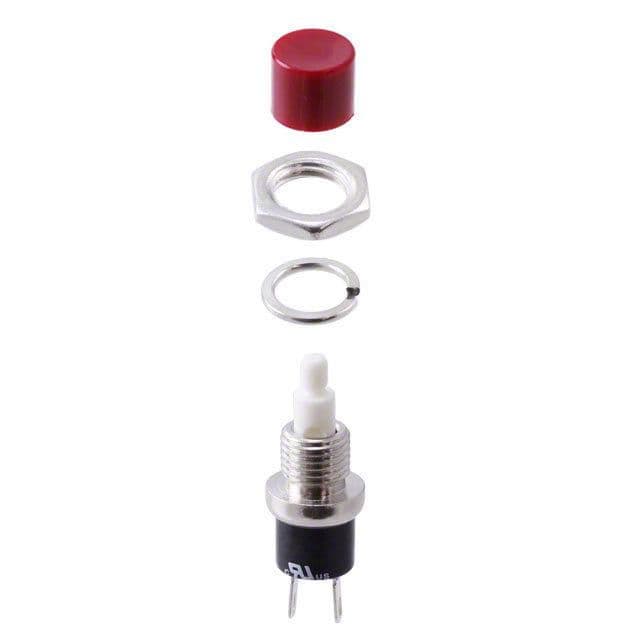

Product Images
