Technical Specifications
E-Switch PV2F240NNM01 technical specifications.
General
| Actuator Length | 0mm |
| Actuator Material | Brass |
| Actuator Type | Round, Button, Flush |
| Contact Material | Brass |
| Contact Plating | Silver |
| Current Rating | 2A |
| Electrical Life | 200000Cycles |
| Life (Hours) | 200000Hour |
| Max Operating Temperature | 55°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 48V |
| Mount | Bushing, Panel, Front |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP65, Water Resistant, Dust Tight |
| RoHS Compliant | No |
| Series | PV2, LAMB |
| Switch Function | Off-Mom |
| Termination | Solder |
| Throw Configuration | SPST |
| DC Rated Voltage | 48V |
Compliance
| RoHS | Not Compliant |
Datasheet
E-Switch PV2F240NNM01 Datasheet
Download the complete datasheet for E-Switch PV2F240NNM01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

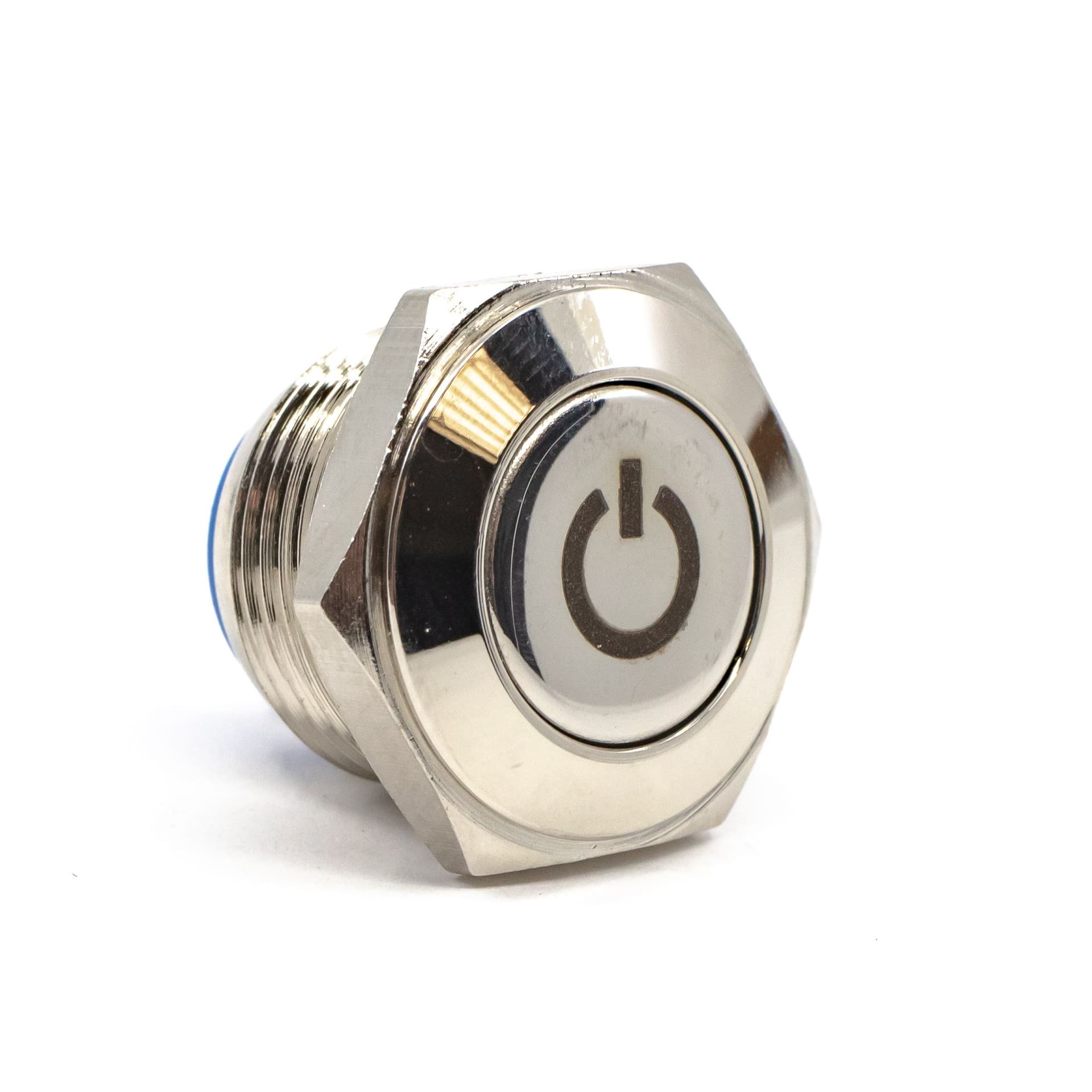

Product Images
