SPST keypad switch featuring a 0.3mm travel and 260gf operating force. Non-illuminated with a polyester actuator, it offers a 0.05A current rating at 12VDC and a maximum voltage rating of 50VDC. This through-hole mount switch has solder terminals and a straight orientation, with bronze contacts plated in silver. Electrical and mechanical life expectancy is 100,000 cycles, operating within a -20°C to 70°C temperature range.
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
E-Switch TL1100EF260Q technical specifications.
General
Actuator Length
3.5mm
Actuator Material
Polyester
Actuator Type
Standard
Contact Material
Bronze
Contact Plating
Silver
Current Rating
50mA
Electrical Life
100000Cycles
Illumination Type
Non-Illuminated
Max Operating Temperature
70°C
Max Voltage Rating (DC)
50V
Mechanical Life
100000Cycles
Min Operating Temperature
-20°C
Mount
Through Hole
Operating Force
260gf
Orientation
Straight
Package Quantity
1
Packaging
Bulk
RoHS Compliant
Yes
Series
TL1100
Switch Function
Off-Mom
Switch Travel
0.3mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
E-Switch TL1100EF260Q Datasheet
Download the complete datasheet for E-Switch TL1100EF260Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

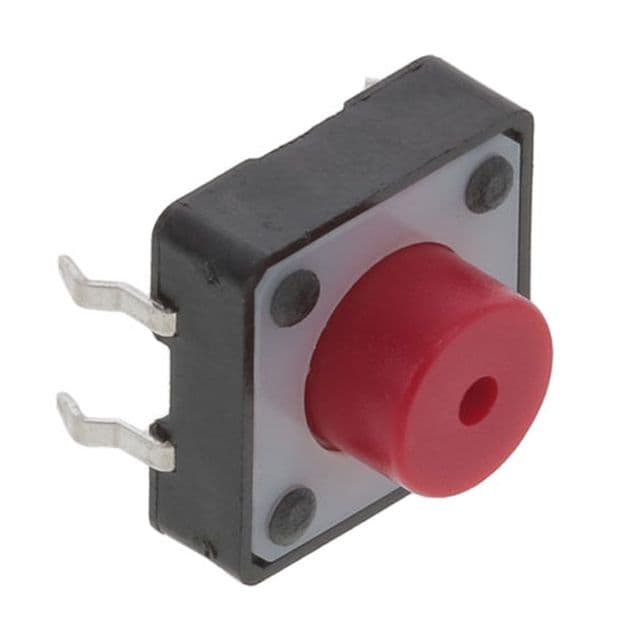

Product Images
