SPST maintained keypad switch featuring a 6mm size and through-hole mounting with straight PC pin termination. Offers a 50mA contact current rating at 12VDC, with a maximum voltage rating of 50VDC. Constructed with bronze and silver contacts, silver plating, and a nylon actuator. Provides 100,000 electrical and mechanical cycles, operating within a -20°C to 70°C temperature range.
Storage6mm
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
E-Switch TL1105AF100Q technical specifications.
General
Actuator Length
1.4mm
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Contact Current Rating
50mA
Contact Material
Bronze, Silver
Contact Plating
Silver
Current Rating
50mA
Electrical Life
100000Cycles
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Length
6mm
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
50V
Mechanical Life
100000Cycles
Mount
Through Hole
Operating Force
100gf
Orientation
Straight
Package Quantity
1000
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TL1105
Size
6mm
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
12V
Width
6mm
Compliance
RoHS
Compliant
Datasheet
E-Switch TL1105AF100Q Datasheet
Download the complete datasheet for E-Switch TL1105AF100Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

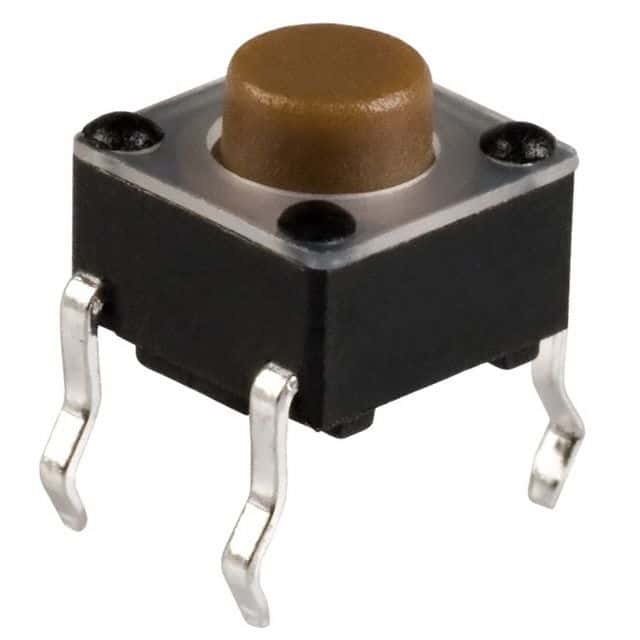

Product Images
