SPST tactile switch with a 6mm size and through-hole mounting. Features a 250gf operating force, 0.25mm switch travel, and a 0.7mm nylon actuator. Rated for 50mA at 12V DC, with a contact material of silver-plated bronze and an electrical and mechanical life of 100,000 cycles. Operates within a temperature range of -20°C to 70°C.
Storage6mm
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
E-Switch TL1105F250Q technical specifications.
General
Actuator Length
0.7mm
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Color
Black
Contact Current Rating
50mA
Contact Material
Bronze, Silver
Contact Plating
Silver
Current Rating
50mA
Electrical Life
100000Cycles
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Voltage Rating (DC)
50V
Mechanical Life
100000Cycles
Mount
Through Hole
Operating Force
250gf
Orientation
Straight
Package Quantity
750
Packaging
Bulk
Reach SVHC Compliant
No
Series
TL1105
Size
6mm
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
12V
Width
6mm
Compliance
RoHS
Compliant
Datasheet
E-Switch TL1105F250Q Datasheet
Download the complete datasheet for E-Switch TL1105F250Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

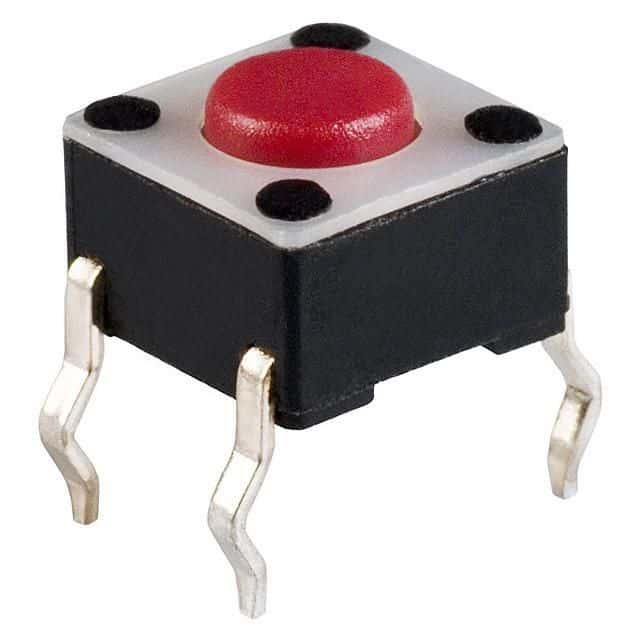

Product Images
