Technical Specifications
E-Switch TL1105KF160Q technical specifications.
General
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Contact Material
Silver
Contact Plating
Silver
Current Rating
50mA
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Max Operating Temperature
70°C
Mechanical Life
100000Cycles
Min Operating Temperature
-20°C
Mount
Through Hole
Operating Force
160gf
Package Quantity
1000
Packaging
Bulk
RoHS Compliant
Yes
Series
TL1105
Size
6mm
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
E-Switch TL1105KF160Q Datasheet
Download the complete datasheet for E-Switch TL1105KF160Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

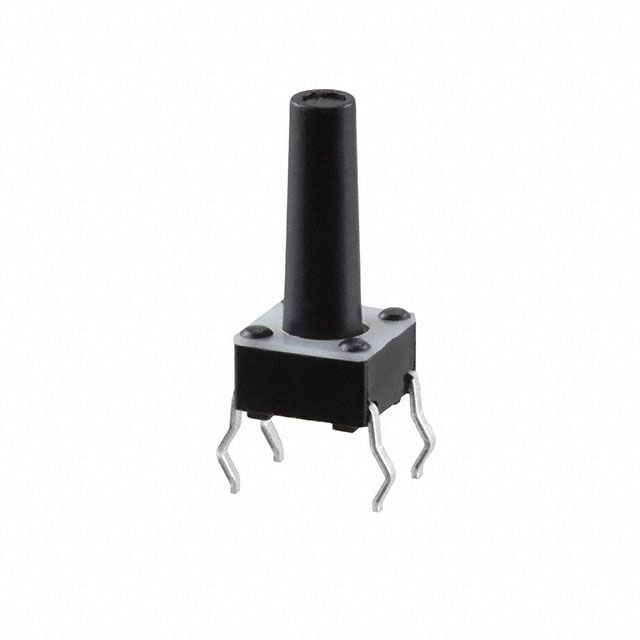

Product Images
