SPST tactile switch featuring a 6mm round, non-illuminated button with a vertical orientation and PC pin termination. This through-hole mounted component offers a 50mA contact current rating, 12V DC rated voltage, and a 0.98N (100gf) operating force with 0.25mm travel. Constructed with a Nylon/Polyamide actuator and silver contacts, it boasts a mechanical life of 100,000 cycles and operates within a -20°C to 70°C temperature range. Lead-free and RoHS compliant, this switch is supplied in bulk packaging.
Storage6mm
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
E-Switch TL1105LF100Q technical specifications.
General
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Contact Current Rating
50mA
Contact Material
Silver
Contact Plating
Silver
Current Rating
50mA
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Max Operating Temperature
70°C
Mechanical Life
100000Cycles
Min Operating Temperature
-20°C
Mount
Through Hole
Operating Force
100gf
Orientation
Vertical
Package Quantity
750
Packaging
Bulk
RoHS Compliant
Yes
Series
TL1105
Size
6mm
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
12V
Width
6mm
Compliance
RoHS
Compliant
Datasheet
E-Switch TL1105LF100Q Datasheet
Download the complete datasheet for E-Switch TL1105LF100Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

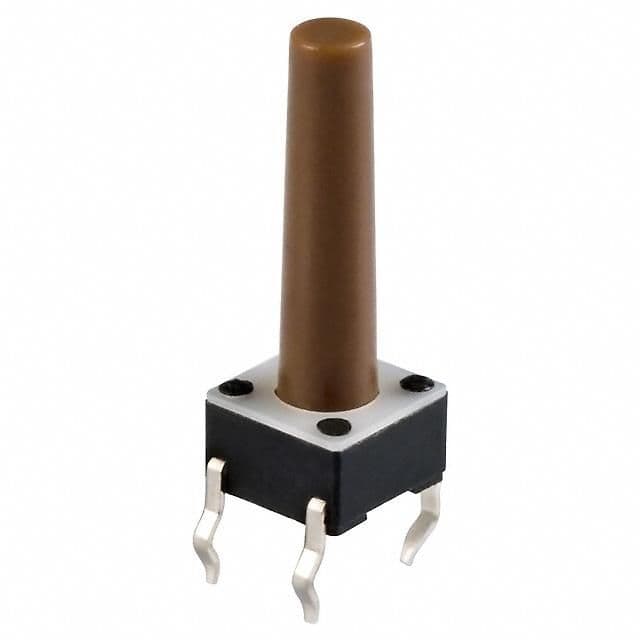

Product Images
