Side-actuated tactile switch featuring a 6mm square footprint and through-hole mounting. Offers a 160gf operating force, 0.25mm travel, and SPST switch function. Rated for 50mA at 12VDC with a 50VDC maximum voltage rating. Durable construction includes silver-plated bronze contacts and a nylon actuator, providing 100,000 electrical and mechanical life cycles.
Storage6mm
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
E-Switch TL1105SF160Q technical specifications.
General
Actuator Length
4.75mm
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Color
Black
Contact Current Rating
50mA
Contact Material
Bronze, Silver
Contact Plating
Silver
Current Rating
50mA
Electrical Life
100000Cycles
Illumination Type
Non-Illuminated, Illuminated
Lead Free
Lead Free
Length
6mm
Max Operating Temperature
70°C
Max Voltage Rating (DC)
50V
Mechanical Life
100000Cycles
Min Operating Temperature
-20°C
Mount
Through Hole
Operating Force
160gf
Orientation
Right Angle
Package Quantity
1000
Packaging
Bulk
Reach SVHC Compliant
No
Series
TL1105
Size
6mm
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
12V
Width
6mm
Compliance
RoHS
Compliant
Datasheet
E-Switch TL1105SF160Q Datasheet
Download the complete datasheet for E-Switch TL1105SF160Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

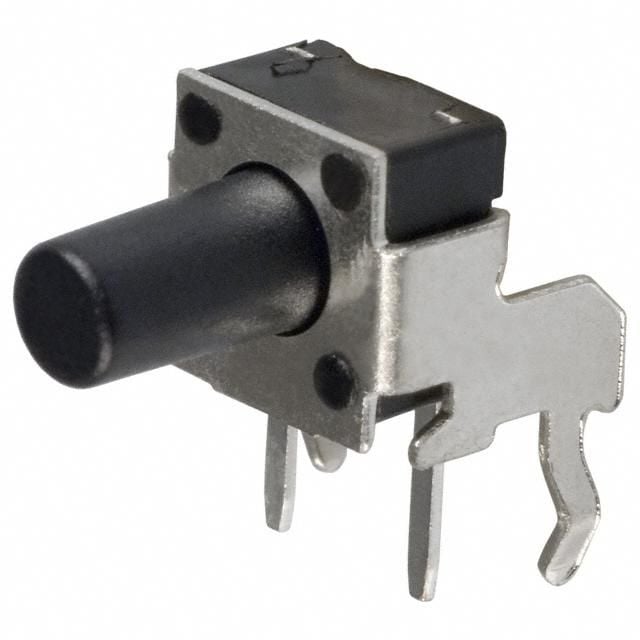

Product Images
