E-Switch
TL1105XF250Q
Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.94N, Solder Terminal, Through Hole-right Angle
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
E-Switch TL1105XF250Q technical specifications.
General
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Color
Black
Contact Plating
Silver
Current Rating
50mA
Illumination Type
Non-Illuminated
Max Operating Temperature
70°C
Mechanical Life
100000Cycles
Min Operating Temperature
-20°C
Mount
Through Hole
Operating Force
250gf
Package Quantity
1000
Packaging
Bulk
RoHS Compliant
Yes
Series
TL1105
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
E-Switch TL1105XF250Q Datasheet
Download the complete datasheet for E-Switch TL1105XF250Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

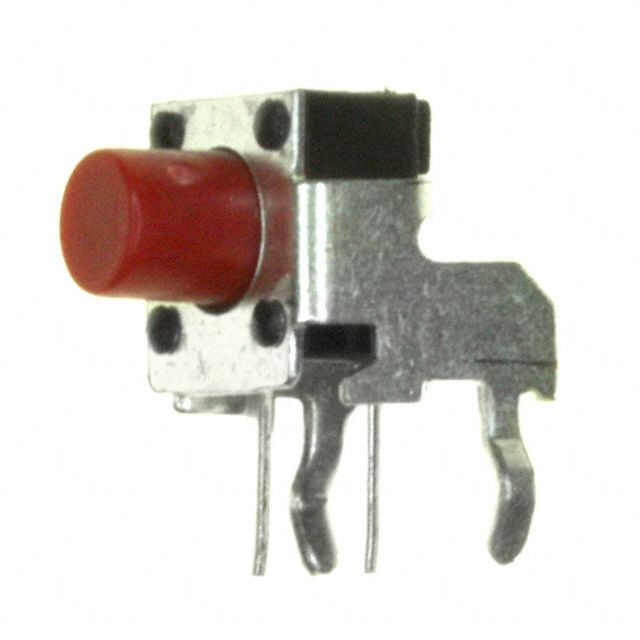

Product Images
