SPST Keypad Switch featuring a 6mm size and a 12.7mm nylon actuator. This non-illuminated, through-hole mount switch offers a 50mA contact current rating at 12VDC, with a maximum voltage rating of 50VDC. It boasts a mechanical and electrical life of 100,000 cycles, a 160gf operating force, and a 0.25mm switch travel. Terminated with PC pins for straight PCB mounting, this RoHS compliant component operates within a -20°C to 70°C temperature range.
Storage6mm
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
E-Switch TL1105YF160Q technical specifications.
General
Actuator Length
12.7mm
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Contact Current Rating
50mA
Contact Material
Bronze, Silver
Current Rating
50mA
Electrical Life
100000Cycles
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Max Operating Temperature
70°C
Max Voltage Rating (DC)
50V
Mechanical Life
100000Cycles
Min Operating Temperature
-20°C
Mount
Through Hole
Number of Positions
2
Operating Force
160gf
Orientation
Straight
Package Quantity
1000
Packaging
Bulk
RoHS Compliant
Yes
Series
TL1105
Size
6mm
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
E-Switch TL1105YF160Q Datasheet
Download the complete datasheet for E-Switch TL1105YF160Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

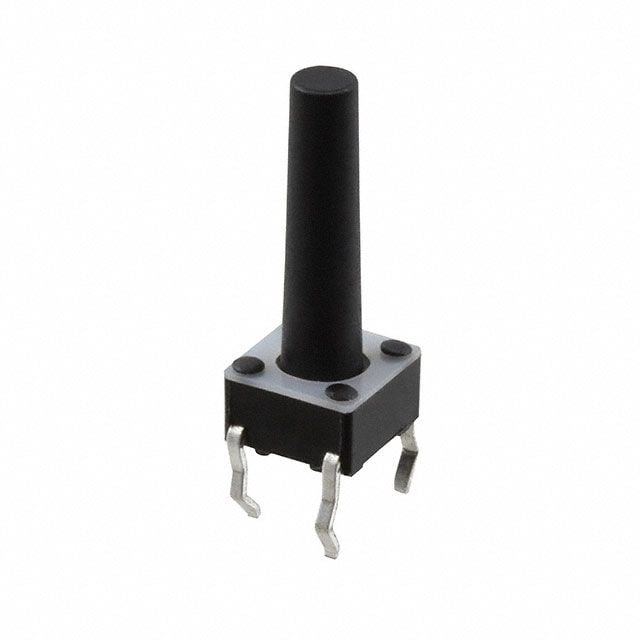

Product Images
