E-Switch
TL1240BQ
Keypad Switch, SPST, 0.05A, 12VDC, 6 PCB Hole Cnt, Solder Terminal, Through Hole-straight,
Current Rating50mA
MountingThrough Hole
Quick Jump:
Technical Specifications
E-Switch TL1240BQ technical specifications.
General
Actuator Material
PBT, Polybutylene
Current Rating
50mA
Illumination Color
Blue
Illumination Type
LED, Illuminated
Lead Free
Lead Free
Max Operating Temperature
70°C
Mechanical Life
100000Cycles
Min Operating Temperature
-20°C
Mount
Through Hole
Operating Force
160gf
Package Quantity
1000
Packaging
Bulk
RoHS Compliant
Yes
Series
TL1240
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pin
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
E-Switch TL1240BQ Datasheet
Download the complete datasheet for E-Switch TL1240BQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

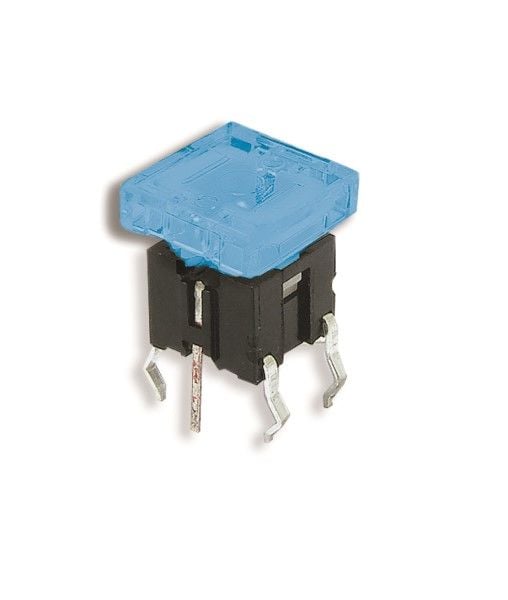

Product Images
